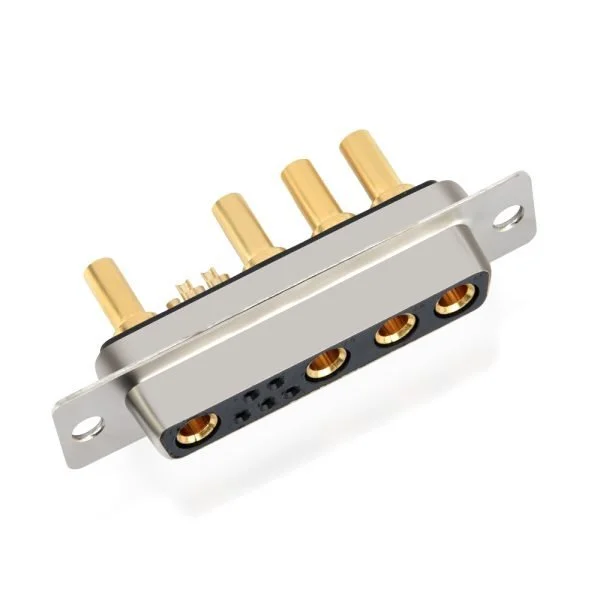

High Current 9w4 Female Mixed Layout D-Sub Connector
Designed with gold-plated contacts and a robust metal shell, it provides stable electrical performance, low contact resistance, and reliable mechanical durability. The mixed-layout structure helps reduce installation space and simplifies cable assembly, making it suitable for industrial, automation, power control, and communication applications.
Product Structure
D-sub is the abbreviation for "D-type ultra-small connector", with its metal casing in the shape of a "D", ensuring the correct insertion direction. 9W4 represents its pin/connector count specification, specifically referring to a 9-pin connector but not a standard arrangement.
"9": Indicates that there are 9 contact positions inside the connector housing.
"W4": Means that among these 9 positions, 4 are large-sized pins/holes for welding high-current cables, and the remaining 5 are standard-sized signal pins. This design enables it to simultaneously transmit high current (through the W pins) and control signals.
"Female connector": Refers to the part of the connector where the contacts are the holes, usually installed at the device end or the end of the cable, to receive the insertion of the male connector (pins).
Features
Integrated power and signal contacts in one connector
Supports combined transmission of power and data signals
Reduces wiring complexity and saves installation space
Large-size power contacts support high-current transmission
Suitable for power supply and industrial control systems
EMI countermeasure shielded connectors.
Gold-plated contacts ensure low contact resistance
Stable signal transmission and improved conductivity
Excellent mating durability and corrosion resistance
Metal shell provides enhanced mechanical strength
Secure panel-mount design for vibration resistance
Suitable for harsh industrial environments
Apllications
PLC systems
Servo motor control
Industrial robots
Power & Energy Systems
Power distribution units
Battery management systems
Industrial power supply equipment
Signal and power integrated transmission systems
Data acquisition devices
Communication control modules
Railway control systems
Vehicle-mounted electronic equipment
Power and signal interface modules
Measurement equipment
Industrial testing systems
Control cabinets and instrumentation devices
| Connectors | 9W4 9-pin High-current connector Female | Classification | D-SUB Connector |
| Quantity of Pins | 9 | Terminal Material | Copper alloy |
| Interface | Machine Solder typePin type | Pin type | Carriage pin |
| Nut | Copper alloy with nickel plating | Rated current | 3A |
| Rubber core material | PBT | Shell | Steel material, tin finished |
| Connector insulator | PBT thermoplastic,30% glass filled, UL 94v-0 rated, black color | High power contact material | Brass, gold plated |
| High power contact current rating | 10,20,or 40 AMPS | High power contact resistance | 2.7 million hms max. |
| Dielectric withstanding voltage | 1000 V AC for 1 minute | Rated current | 10A/20A/30A/40A |
| Rated voltage | 250V AC | Insulation resistance | 5000mΩ Min |
| Contact resistance | 30mΩ Max | Withstand voltage value | 500V AC rms |
| Working temperature | -55℃-125℃ | Salt spray | 24h-72h |
| IP rating | IP rating | Flame retardant rating | UL 94-V0 |
