Adamicu provides one-stop service for the industrial connectors & industrial cables

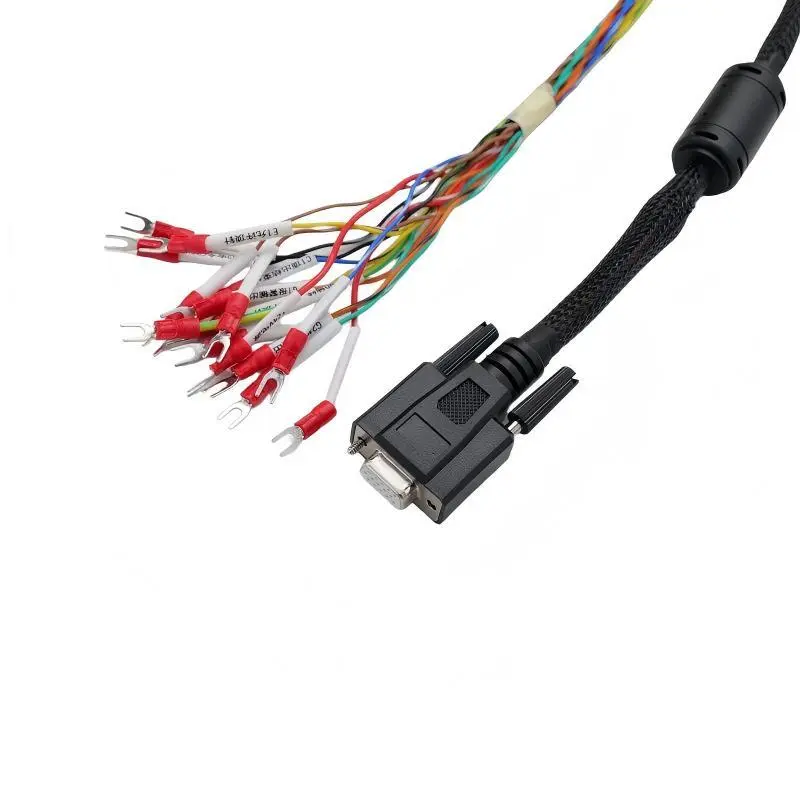

DB15 connector to open terminal + U-shaped Fork Terminal Industrial Special-purpose Connection Cable ADAMICU 1

DB15 connector to open terminal + U-shaped Fork Terminal Industrial Special-purpose Connection Cable ADAMICU 2

DB15 connector to open terminal + U-shaped Fork Terminal Industrial Special-purpose Connection Cable ADAMICU 3

DB15 connector to open terminal + U-shaped Fork Terminal Industrial Special-purpose Connection Cable ADAMICU 4

DB15 connector to open terminal + U-shaped Fork Terminal Industrial Special-purpose Connection Cable ADAMICU

Industrial-grade connection cable with DB15 connector (male/female optional) and open wire end with U-type crimp terminals. Designed for industrial automation, PLC, instrumentation and signal transmission.
Ensures stable and reliable connection in dusty, vibrating industrial environments with solid protection and easy wiring.

Inquiry

Write a Review

Features

The U-type fork terminals are made of high-purity copper alloy base material with surface tin-plated treatment, featuring low contact resistance and anti-oxidation performance.

Compatible with DB9 interfaces of various industrial equipment (such as PLC, industrial computers, instrumentation, sensors, etc.).

Applications

Industrial Automation Scenario: Suitable for signal transmission and power supply connection between equipment in automated production lines.

PLC Control Scenario: Connects to PLC equipment to realize control signal transmission and wiring adaptation.

Instrumentation Scenario: Connects various industrial instruments and detectors to ensure stable data transmission.

Sensor Scenario: Adapts to the wiring needs of industrial sensors to realize signal acquisition and transmission.

Connectors	DB 15-Pin	Connector Gender	F
Connector Orientation	Straight / Right-Angled (90°)	Pin number	15
AWG	16AWG	Cable diameter	7.0mm
Length	3/5/7/8/10/15/20/25/30M	Wire core material	Copper
Min.bending radius	8 Times*OD	Max.bending cycles	≥3000 times
Rated cuurent	1-3A	Rated voltage	30VDC / 250V AC
Tensile property	50N	Contact resistance	<4mΩ
Working temperature	-40°C to +105°C	Contact electroplated layer	Gold
Jacket	PVC	Cable color	Black/Orange/Gray
IP rating	IP67	Certification	UL,RoHS
Customized service	Length, stripping size, sheath color, interface type, etc. can all be customized
