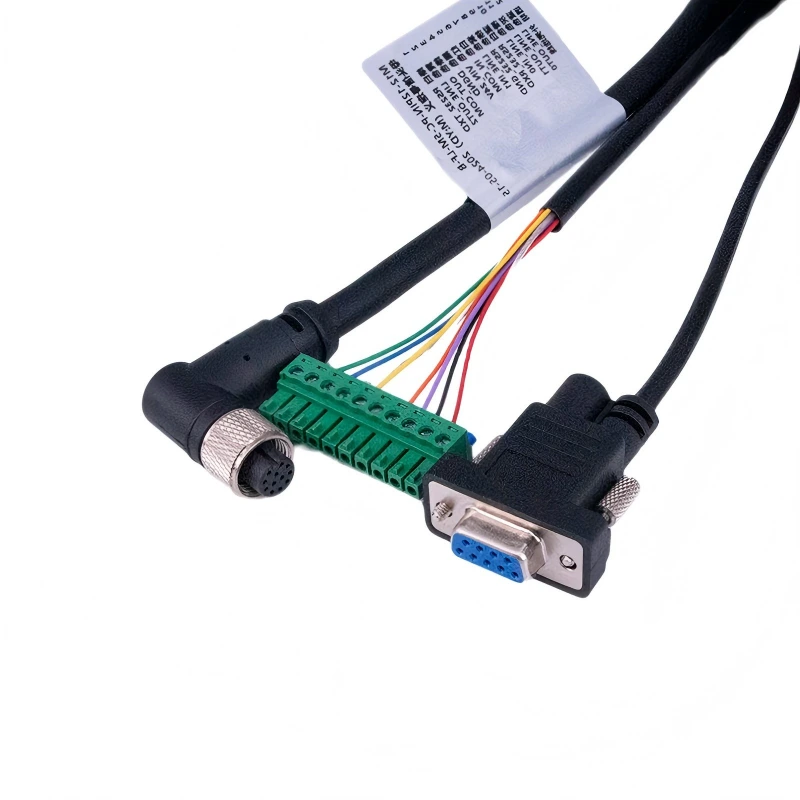

M12 12-Pin Right Angle to DB9 Female & Terminal Block Y-Splitter Cable Compatible with Keyence Cognex

Features

  One-to-two Y-splitter design

One M12 connector splits into DB9 and terminal block interfaces, making the cable suitable for multi-function equipment connection.

Integrates an M12 industrial connector, a DB9 standard serial port, and a green terminal. It provides one-stop connection for barcode readers, PLCs, and on-site wiring needs, combining power supply, control signals, and feedback data transmission in one cable.

  Right-angle M12 connector

Saves installation space and is suitable for compact equipment, control cabinets and machine-side installation.

  DB9 connector interface

Can be used for serial communication, control signal transmission or customized wiring according to the customer’s device requirements.

  Terminal block connection

Convenient for field wiring, testing, maintenance and signal distribution.

  Custom cable length and wiring available

Cable length, pin assignment, wire color, connector type and labeling can be customized based on customer drawings or samples.

  Durable molded connector design

Molded strain relief helps improve cable durability and reduce damage caused by bending or pulling.

  Suitable for industrial environments

Designed for stable signal transmission in automation equipment, machine vision systems and industrial reader applications.

  Multi-signal Synchronous Transmission: Simultaneously carries barcode reader power lines, trigger control lines, RS232/485 communication lines, and encoder feedback lines, meeting the requirements of high-speed scanning, data return, and equipment linkage.

  Terminal Block Wiring: Equipped with a green European-style screw terminal block, allowing direct wire stripping and crimping without soldering.

Applications

  Industrial Automation Production Line Scanning: Compatible with fixed barcode readers in automotive parts, 3C electronics, medical device, and other production lines, enabling automatic collection and upload of product traceability codes.

  Sensors and Actuators: Proximity sensors, photoelectric sensors, pressure sensors, encoders, cylinder connections

  Servo Motors: Servo motor encoder feedback, power and control circuit connections

  Instrumentation: Test and measurement equipment, data acquisition systems, laboratory instruments

  Communication Equipment: Communication base stations, network equipment, fiber optic transmission systems

  Medical Equipment: Medical instruments, monitoring equipment, diagnostic systems

Main Functions

This cable can be used for:

●  Barcode reader connection

●  Industrial scanner signal transmission

●  Trigger signal wiring

●  Power and I/O connection

●  RS232 / control signal interface connection

●  Equipment testing and debugging

●  Customized machine-side cable assembly
