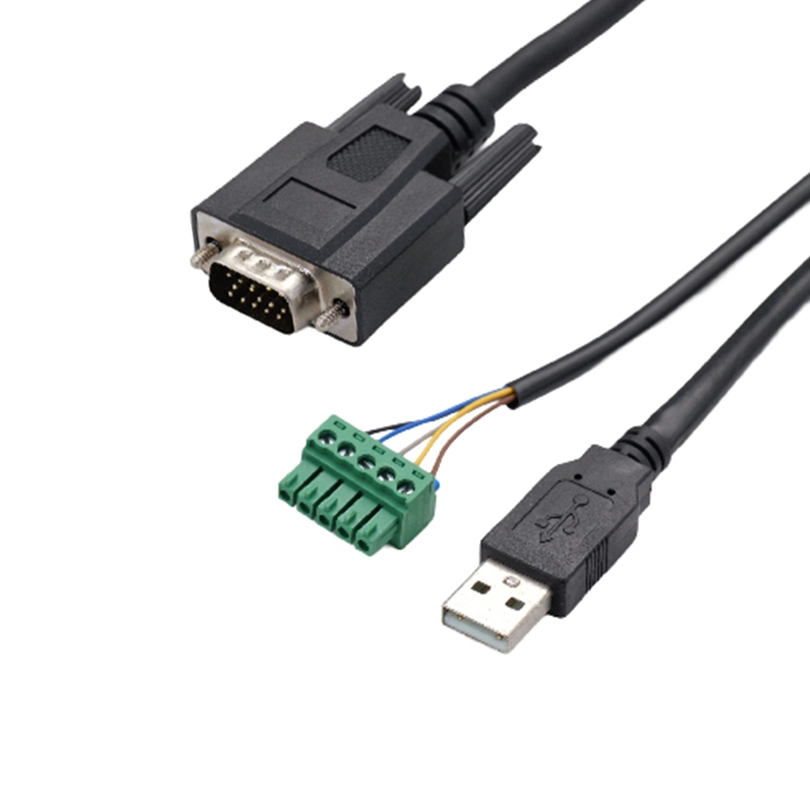

Industrial Code Reader Cable, D-Sub 15 Pin to USB and 6-Pin Terminal Block Breakout Cable
This custom code reader breakout cable features a D-Sub 15 Pin connector on one end and two separate output interfaces on the other end: a USB connector and a pluggable terminal block. The cable is suitable for industrial code reader applications where multiple signals need to be routed through one compact cable assembly.
The D-Sub connector is used for connection to the code reader or vision device, while the USB interface can be used for communication or device connection depending on the equipment design. The terminal block allows easy wiring for power, trigger, input/output or control signals. This structure helps simplify installation, reduce wiring complexity and improve maintenance efficiency in industrial automation systems.
Features
Standard D-Sub 15 Pin connector for stable connection with industrial code readers and vision devices.
Integrates USB and terminal block outputs into one cable assembly, simplifying system wiring.
Convenient for connecting power, trigger signals, digital input/output and control wiring.
Pin assignment, cable length, wire color, connector type and terminal configuration can be customized.
Designed for stable signal transmission in industrial automation environments.
Clear branch structure makes field wiring, replacement and troubleshooting easier.
Applications
Pin Assignment / Wiring Diagram
Why Choose This Code Reader Cable?
This cable assembly helps customers reduce wiring complexity when connecting industrial code readers to control systems. Instead of using several separate cables, the D-Sub 15 Pin breakout design integrates different signal paths into one structured cable solution. It is suitable for equipment manufacturers, automation integrators and machine vision system builders who need reliable and customized cable assemblies.
| Connectors | HDB 15-pin Male, USB 2.0 Type A Male, Terminal 5-pin | AWG | 26AWG, 24AWG |
| Connector 1 | HDB 15-pin Male, terminals with gold-plated, black plastic, with traditional soldering wire type. | Cable diameter | 6.0mm |
| Connector 2 | USB 2.0 Type A Male, terminals with half-gold plating, the iron casing is nickel-plated, it is made of white rubber and has soldering lines in a three-piece design. | Terminal material | E0306 Tubular Terminal, Insulation, blue |
| Connector 3 | 5-pin straight-through terminal for wiring, 3.81mm | Jacket | PVC |
| Cable Mechanical | (26AWG*1P+AL)*1C+26AWG*AC+24AWG*4C+AB OD:6.0mm Black PVC | Plastic material 1 | Low-density transparent PE |
| Screw | PVC Injection-molded screw with nickel plating, black | Plastic material 2 | 45P PVC, black |
| Cable color | Black | Certification | UL,RoHS |
