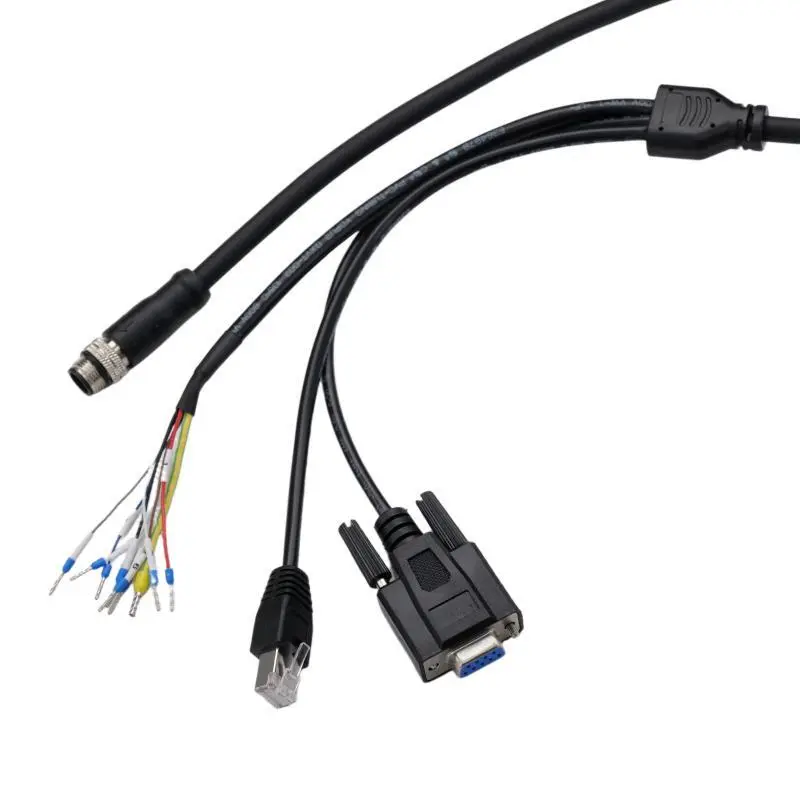

Barcode Reader Cable, Four connectors, M12 A-Code 17-pin Female to 8P8C to DB 9-pin Female to DC to OPEN, For Code Reader
M12 A-code 17-pin female connector: Connects to the barcode scanner body. A-code is a standard encoding for sensors/actuators, preventing incorrect insertion.
8P8C (RJ45 style): Usually used for transmitting Ethernet communication (such as EtherNet/IP, Profinet) or data buses of specific scanners.
DB9 female connector: Used for transmitting RS-232 serial communication data, connecting the COM ports of industrial control computers, PLCs or old equipment.
2-pin terminals/DC plug: Provides DC power (such as 12-24V DC) and trigger signal input/output (such as triggering scanning, reading light).
Open wire tail: Provides additional undefined wires for connecting user-defined I/O signals (such as scanning success indicator light, buzzer control) or special customized functions.
Features
Applications
| Connectors | M12 A-Code 17-pin Female,8P8C,DB 9-pin Female,DC | Connector 1 | M12 A-Code 17-pin Female,black plastic,terminals with gold-plated |
| Connector 2 | Crystal head,8P8C,terminal phosphor bronze plated with gold50U, nickel-plated copper shell with shielding | Connector 3 | DB 9-pin Female, terminals with gold-plated, blue plastic, Out shell nickel plated |
| Connector 4 | DC 5.5*2.1mm, Out shell copper plated with nickel | AWG | 26AWG |
| Cable diameter | 8.0mm | Jacket | PVC |
| Screw | M3 Single-hole flower-shaped screw, nickel plated | Cable color | Black |
| Plastic material 1 | Low-density transparent PE | Plastic material 2 | 45P PVC, black |
| Shielding | Double-layer shielding with aluminum foil and woven mesh | Outer covering material | PVC or PUR |
| Working temperature | -25°C ~ +80°C | Contact electroplated layer | Gold |
| Rated voltage | 30V DC | Rated current | 2A per pin |
| IP rating | IP67 | Certification | UL,RoHS |
| Customized service | Length, stripping size, sheath color, interface type, etc. can all be customized | ||
