Custom Code Reader Cable Assembly with D-Sub, RJ45 and Terminal Block
It combines data communication, power supply, and digital I/O signal transmission into one cable, helping simplify wiring between the code reader and the control system.

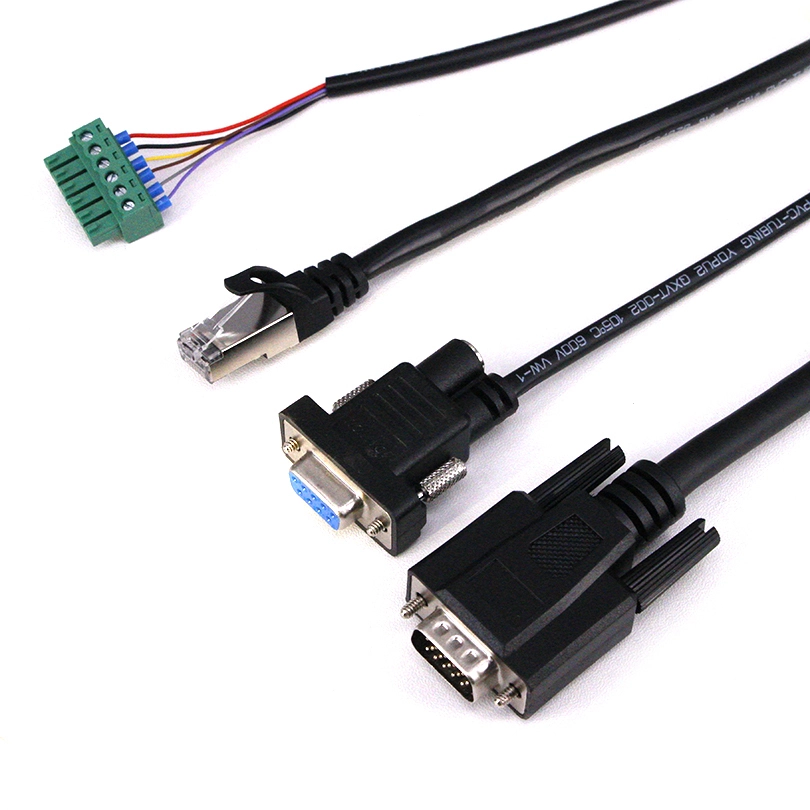

One end uses an HDB 15-pin male connector for connection to the code reader. The other end integrates a DB 9-pin female connector for RS-232 communication, a DC 5.5 × 2.5 mm power connector, a Cat.6 RJ45 Ethernet connector, and a pluggable 6-pin terminal block for trigger and I/O signal connection.
This cable assembly helps reduce wiring complexity, improve installation efficiency, and ensure stable performance in industrial code reading applications.
Features
Applications
Solution
ADAMICU provides customized code reader cable solutions based on the customer’s reader model, wiring diagram and application environment. We can help customers integrate different interfaces into one cable assembly, such as D-Sub, RJ45, M12, aviation connector, terminal block and open-end wires.
Our solution can support:
✔️ Power supply connection
✔️ Ethernet communication
✔️ Trigger signal transmission
✔️ Digital I/O signal connection
✔️ PLC and sensor connection
✔️ Shielded cable design for industrial environments
✔️ Custom pin assignment according to customer drawings
✔️ OEM and private-label cable assembly production
This helps customers reduce wiring complexity, improve installation efficiency and ensure stable performance in industrial code reading applications.
| Connectors | HDB 15-pin Male, DB 9-pin Female, DC 5525, cat.6 8P8C, Terminal 6-pin | AWG | 26AWG, 28AWG |
| Connector 1 | HDB 15-pin Male, terminals with gold-plated, black plastic, Out shell nickel plated | Cable diameter | 8.0mm |
| Connector 2 | DB 9-pin Female, terminals with gold-plated, blue plastic, Out shell nickel plated | Terminal | E0306 Tubular Terminal, Insulation, Blue |
| Connector 3 | DC 5.5*2.5*21mm, Out shell copper plated with nickel | Screw 1 | M3 Injection-molded screw with nickel plating, black |
| Connector 4 | Cat.6 8P8C, terminals with gold-plated, PC | Screw 2 | M3 Slotted thread screws, nickel plated |
| Connector 5 | 6-pin straight-through terminal for wiring, 3.81mm | Plastic material 1 | Low-density transparent PE |
| Jacket | PVC | Plastic material 2 | 45P PVC, black |
| Cable color | Black | Certification | UL,RoHS |
