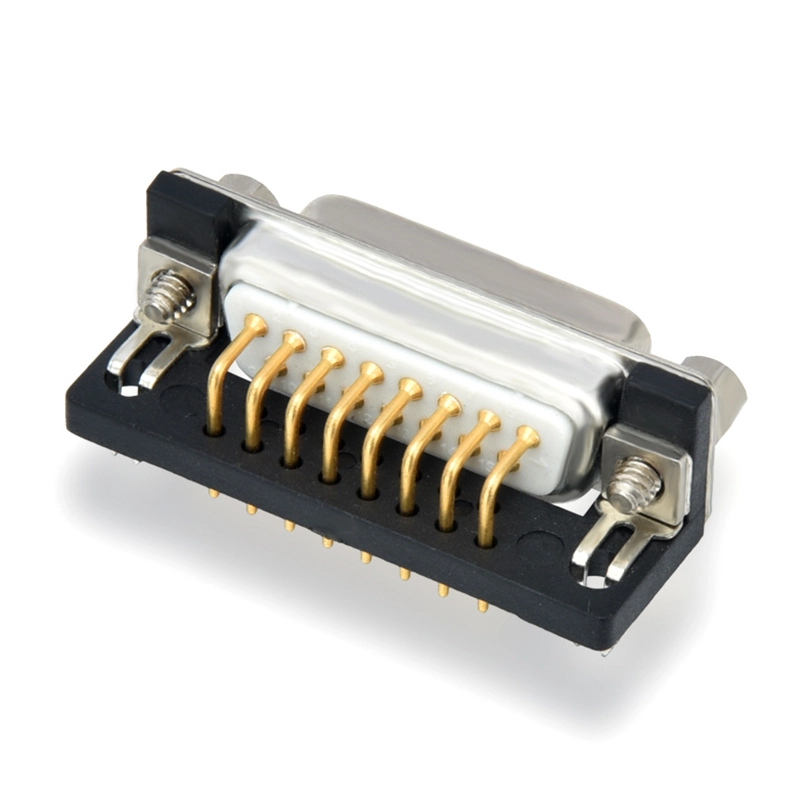

D-sub Connector DR 15Pin Female/Male, Stamping pin type
The DR series 15-pin connector is a high-density D-sub interface with stamped pins and a compact structure.
The 15-pin (Female) connector is used to match the standard 15-pin (Male) connector.
The terminal pins are formed by stamping/punch, ensuring that each pin has extremely high dimensional consistency, excellent mechanical strength, and good conductivity.
The pins are typically gold-plated to provide lower contact resistance and stronger corrosion resistance, ensuring long-term stability of signal transmission.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
4 (25)
3 (25)
2 (26)
Features
| Connectors | DR 15-pin Female/Male Carriage pin type | Rated voltage | 250V AC |
| Classification | D-SUB Connector | Insulation resistance | 1000mΩ Min |
| Quantity of pins | 9,15,25,37 (Customized) | Contact resistance | 30mΩ Max |
| Interface | Machine Solder type | Withstand voltage value | 500V AC RMS |
| Pin type | Punch pin | Working temperature | -55℃ to 105℃ |
| Rubber core material | PBT | Salt spray | 24h-72h (Customized) |
| Terminal material | Copper alloy | IP rating | IP65/lP67 |
| Housing | Iron alloy (SPCC-SD recommended), nickel-plated, gold, tin-plated | Flame retardant rating | UL 94-V0 |
| Rated current | 3A DC |
