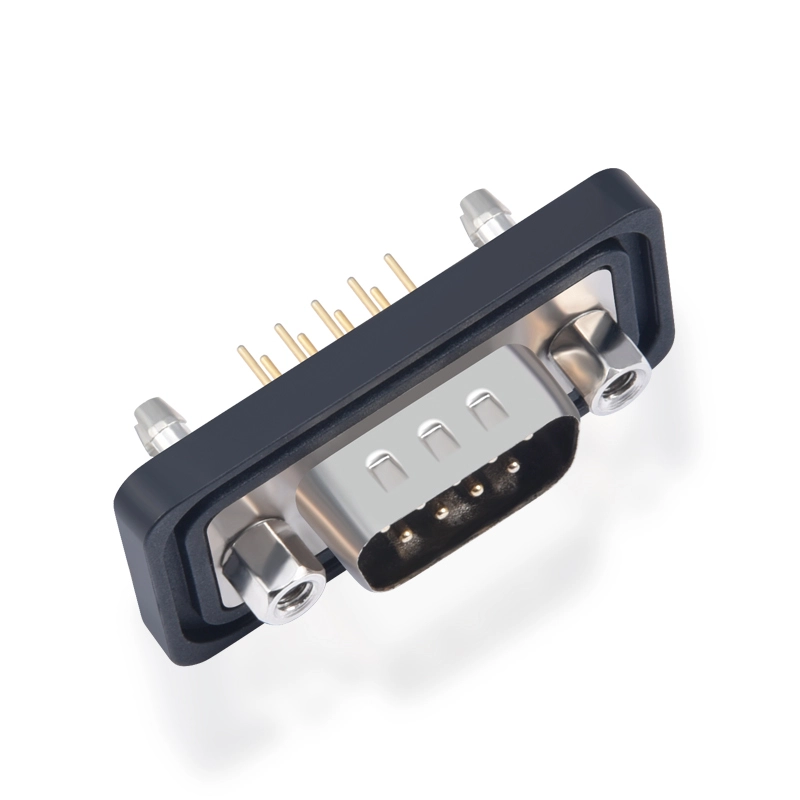

DP 9-pin D-SUB Connector Waterproof 180° Staming Pin Front Rivet Nut and Rear Rivet Hook ADAMICU 1

DP 9-pin D-SUB Connector Waterproof 180° Staming Pin Front Rivet Nut and Rear Rivet Hook ADAMICU 2

DP 9-pin D-SUB Connector Waterproof 180° Staming Pin Front Rivet Nut and Rear Rivet Hook ADAMICU 3

DP 9-pin D-SUB Connector Waterproof 180° Staming Pin Front Rivet Nut and Rear Rivet Hook ADAMICU 4

DP 9-pin D-SUB Connector Waterproof 180° Staming Pin Front Rivet Nut and Rear Rivet Hook ADAMICU

This is a D-SUB DP9 waterproof connector. It features a metal shell with a black plastic bezel, integrating a front riveted mounting nut + rear riveted anti-drop hook for an all-in-one reinforced structure. Paired with a one-piece molded waterproof sealing gasket, it adopts an internal 9-pin dual-row design with gold-plated pins to enhance conductivity and corrosion resistance.
It is widely used for panel mounting and signal connection in scenarios such as PLCs, servo drives, industrial PCs, and new energy equipment. It addresses key industry pain points of traditional DB connectors, including insufficient protection rating, easy loosening during installation, and weak anti-interference capability, ensuring long-term stable and reliable industrial control signal transmission even in complex working conditions with moisture, dust, and strong vibration.

Inquiry

Write a Review

120b dp9公

119a dp9公

Features

The pins are made by turning solid copper rods and are gold-plated, ensuring more stable signal transmission with a rated current of over 5A per pin.

The interface is processed with nickel plating, offering excellent oxidation resistance, high plug-and-unplug durability, rust resistance, and a secure, non-loosening connection.

The insulator is made of flame-retardant black PBT plastic, delivering outstanding flame resistance. The plug maintains a stable, non-loosening connection even after frequent plug-and-unplug cycles, and it can pass 24/48-hour salt spray testing.

Applications

Automation: RS232/RS485 serial port signal panel installation interfaces for PLC, servo drivers, industrial control computers, and motion controllers

The signal connection interface of the intelligent sensor
Industrial control equipment

Network communication

Aerospace

Medical devices

Automotive new energy

Connectors	DP 9-pin Male	Classification	D-SUB Connector
Quantity of Pins	9	Terminal material	PA66
Rubber Core Material	Tin	Outer shell	Iron, The front nickel-plated，the rear tin-plated
Interface material	Brass, C3602	Interface gold-plated	Gold-plated 1u/30u
Rated current	3A	Rated voltage	300V
Insulation resistance	≤10mΩ	Contact resistance	≥100MΩ
Plug/unplug cycles	>500 times	Working temperature	-55°C~ 125°C
Salt spray	24/48H	Shielding performance	Shielded
IP rating	IP67	Flame retardant rating	UL 94-V0
