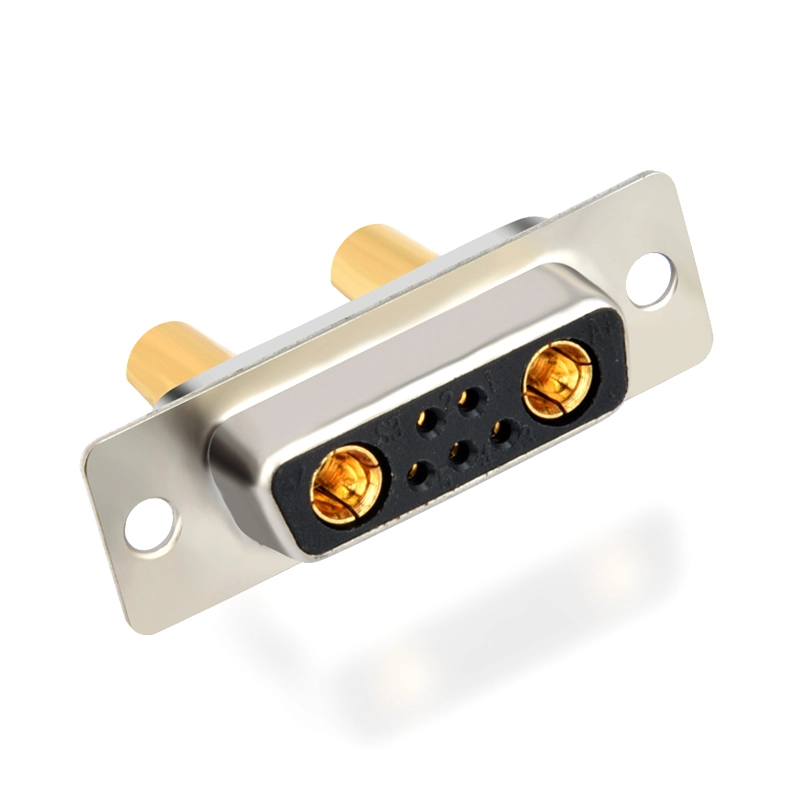

D-sub Connector 7W2 High-current 7-pin Female Machine Solder type
The 7W2 high-current wire-bonded connector is a D-SUB interface connector with a 7-pin (5 small pins + 2 large pins) hybrid structure.
It is specifically designed for high-current transmission, with rated currents up to 10A, 20A, 30A, and 40A.
It is widely used in industrial automation, communications, medical equipment, and other fields.
While maintaining compatibility with traditional D-SUB signal transmission functions, it is specifically optimized for high-current, high-reliability power transmission scenarios.
This classic solution achieves integrated, compact, and reliable connection of signal and high power.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
4 (27)
3 (27)
2 (28)
Features
| Connectors | 7W2 7-pin High-current connector Female | Connector insulator | PBT thermoplastic,30% glass filled, UL 94v-0 rated, black color |
| Classification | D-SUB Connector | High power contact material | Brass, gold plated |
| Quantity of pins | 7 | High power contact current rating | 10,20,or 40 AMPS |
| Interface | Machine Solder type | High power contact resistance | 2.7 million hms max. |
| Pin type | Carriage pin | Dielectric withstanding voltage | 1000 V AC for 1 minute |
| Part number | 187-7W2F-201-000 | Rated current | 10A/20A/30A/40A |
| Terminal material | Copper alloy | Rated voltage | 250V AC |
| Rubber core material | PBT | Insulation resistance | 5000mΩ Min |
| Shell | Steel material, tin finished | Contact resistance | 30mΩ Max |
| Withstand voltage value | 500V AC rms | Working temperature | -55℃-125℃ |
| Salt spray | 24h-72h | Flame retardant rating | UL 94-V0 |
| IP rating | IP65/lP67 |
