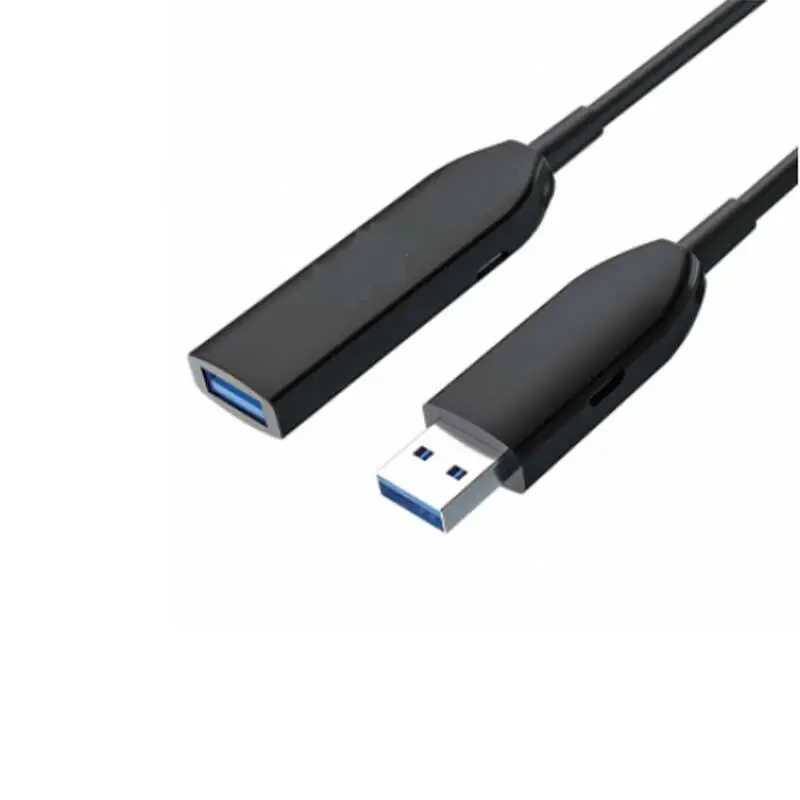

USB Cable USB3.1 G2 TypeA Male to TypeA Female Hybrid
Features
Applications
Used to extend USB connections between industrial cameras and computers or controllers, especially when the camera installation position is far from the host device.
Suitable for connecting USB devices inside or outside automation machines, control cabinets, testing equipment, and production lines.
Can be used in AOI systems, visual inspection machines, barcode reading systems, and quality inspection equipment where stable data transmission is required.
Suitable for high-speed data transfer between USB acquisition modules, test instruments, and host computers.
Used for extending USB ports for external storage devices, USB hubs, industrial cameras, scanners, or other USB peripherals.
Compared with Ordinary USB Cables
1. Better for Long-Distance Extension
Compared with standard copper USB extension cables, the hybrid structure is more suitable for longer-distance transmission while maintaining better signal stability.
2. More Stable High-Speed Data Transfer
Ordinary USB cables may suffer from signal attenuation when the cable length increases. This hybrid USB cable is designed to support more reliable high-speed transmission.
3. Lower Risk of Signal Interruption
It helps reduce problems such as device disconnection, unstable recognition, image delay, or transmission errors, which are common in demanding industrial environments.
4. Better Suitability for Industrial Applications
Compared with common consumer-grade USB cables, this cable is more suitable for industrial cameras, automation equipment, inspection systems, and long-term operation environments.
5. Cleaner Installation Layout
The Type-A male to Type-A female design makes it easier to extend the USB interface to a more convenient position, improving wiring flexibility inside machines or control systems.
| Connector | USB3.1 TypeA Male to TypeA Female | Cable diameter | 4.5mm |
| AWG | 26AWG | Max.Voltage | 5V DC |
| Length | 1M,3M,5M,10M (Customized) | Tensile property | ≥100N |
| Terminal material | Gold-plated | Connector resistance | ≤30Ω |
| Contact electroplated | Gold-plating | Power Consumption | <0.50 W both sides |
| Shielding performance | Shielded | Working temperature | 0°C to 50°C |
| Min.bending radius | 8 Times*OD | Jacket | PVC, CMR / CMP, CPR Eca, LSZH |
| Max.bending cycles | ≥1000 Times | Cable color | Black |
| Max.Current | 0.3A | Certification | UL,RoHS |
| IP rating | IP65/lP67 | Flame retardant rating | UL 94-V0 |
