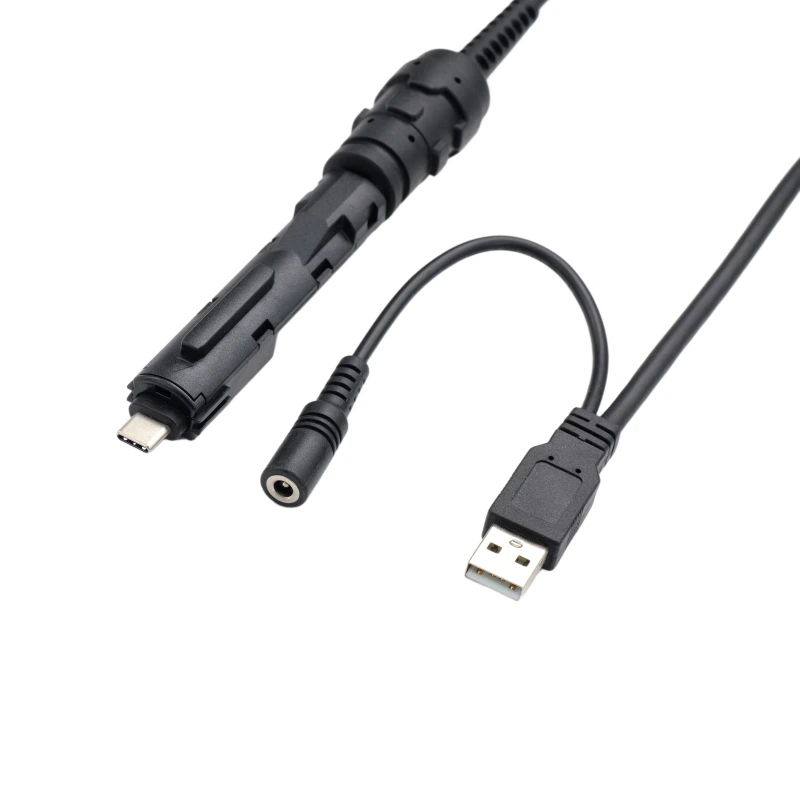

USB Communication Cable USB2.0 A/M + DC 4713 to Type-C For Cognex 8700 Handheld Reader
Integrating high-speed USB data transmission and independent DC power supply, this single cable delivers both power and communication for the handheld reader, significantly simplifying on-site wiring.
Equipped with a highly flexible black PVC drag-chain jacket and fatigue-resistant conductors, it ensures long-term stable operation under repeated bending conditions in cable tracks. Enhanced with superior anti-electromagnetic interference (EMI) shielding, it guarantees efficient, lossless transmission of barcode identification data.
Features
Designed for handheld barcode reader connection, suitable for Cognex DataMan 8700 Series applications.
The cable includes a USB-A connector for data connection and a DC power jack for external power supply.
The device-side connector is designed with an extended molded housing to improve durability and reduce damage from pulling or bending.
The cable ends are designed with strain relief protection, making the assembly suitable for handheld equipment that is frequently moved or plugged in and out.
Applications
Product Highlights
1. Designed for Handheld Reader Applications
This cable assembly supports both data connection and external power connection for industrial handheld barcode readers.
2. Dual-Interface Branch Design
The USB-A connector and DC power jack provide flexible connection options for different operating environments.
.3. Reinforced Molded Connector
The extended molded housing helps protect the device-side connector during frequent handheld operation.
4. Suitable for Industrial Use
The black cable, molded connector, and strain relief structure make it suitable for warehouses, production lines, inspection stations, and logistics operations.
5. Customizable Based on Samples
ADAMICU can manufacture compatible cable assemblies based on customer samples, drawings, or equipment interface requirements.
| Connector 1 | USB2.0 Type-A/M | Connector 2 | DC 4713 to Type-C |
| Connector Orientation | Straight / Right-Angled (90°) | Application | Drag chain |
| AWG | 28AWG 24AWG | Cable diameter | 5.0mm |
| Length | 2500±20mm | Wire core material | Multi-strand oxygen-free copper stranded wire |
| Min.bending radius | 8 Times*OD | Max.bending cycles | ≥ 5 million times |
| Rated cuurent | 10-15A | Rated voltage | USB2.0: DC 5V |
| Conduction impedance | ≤ 3Ω | Contact resistance | < 10mΩ |
| Working temperature | -20°C to +80°C (PVC) | Contact electroplated layer | Gold |
| Jacket | PVC | Cable color | Black/Orange/Gray |
| IP rating | IP65/IP67 | Certification | UL,RoHS |
| Customized service | Length, stripping size, sheath color, interface type, etc. can all be customized | ||
