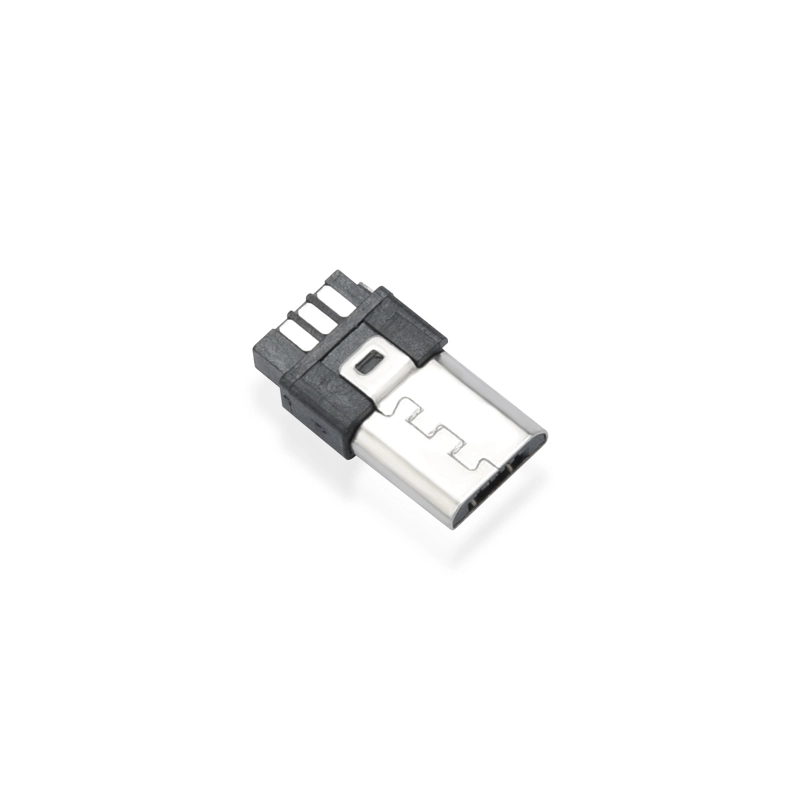

Micro USB Male Connector

This product is the male connector part of the Micro-USB interface standard, and it adopts a clip-type (SMD clip) design. It consists of a metal shielding shell (usually made of stainless steel or cold-rolled steel), an internal insulator (a rubber core, usually made of LCP or PBT high-temperature resistant materials), and an internal copper alloy terminal (male pin). This product is the male connector part of the Micro-USB interface standard, and it adopts a clip-type (SMD clip) design. The back has metal pins (usually called clip feet), which can be directly clamped or welded to the edge or surface of the PCB circuit board. This design is more stable than the traditional direct welding method and can effectively prevent breakage during insertion and removal. The front is a trapezoidal interface with 5 metal contacts (5Pin), and there are usually hook designs on both sides of the shell for fixing on the device.

Shipping Terms:

EXW or DAP

Payment Terms:

100% T/T IN ADVANCE

Place of Origin:

Guangdong,China

Shipping Method:

Customize

Packaging:

Carton

Production Lead Time:

About 7-15 days

Inquiry

Write a Review

Features

Compact and small: The volume is approximately 1/8 of that of the traditional USB-A interface, saving PCB board space.

Plug-and-play: Supports USB 2.0 protocol, with a maximum transmission speed of up to 480 Mbps, and also supports charging function.

High reliability: The clamp design increases mechanical strength, preventing contact failure or solder point detachment caused by frequent daily plugging and unplugging.

Anti-mistake design: The trapezoidal interface and internal contact arrangement have anti-mistake features, preventing incorrect insertion (although the early Micro USB had similar front and back shapes, the internal structure still has anti-mistake features).

High compatibility: Widely compatible with most of the Micro USB data cables and chargers available on the market.

Good reasons for working with us

The target market of our brand has been continuously developed over the years. Now, we want to expand the international market and confidently push our brand to the world.

Company Strength

Full coverage of product categories: From the classic D-sub to miniaturized interfaces, creating a complete connection map

Our Advantages

Connector + Wiring Harness Integration: Unlike simply selling individual components, we offer a "connector → cable → assembly → testing" one-stop service. This not only reduces your procurement and management costs, but also ensures a perfect match between the interface and the wiring.

22+ Years Experience

A professional manufacturer that has been deeply engaged in the field of industrial connectors for 22 years, mainly serving the machine vision and industrial automation industries, and providing comprehensive customized services.

Cooperative partner

With over 3,000 partners across the world, ADAMICU's components are building trust within a worldwide ecosystem.

Applications

Mobile devices: Early Android smartphones, tablets, portable power banks (charging devices), MP3/MP4 players.

Smart wearables and home appliances: Bluetooth headphones, Bluetooth speakers, electronic dictionaries, children's smart watches.

Vehicle and industrial: Vehicle chargers, dash cameras, GPS navigators, smart home control boards.

Others: USB small fans, LED night lights, security alarms, electric toys, various DIY electronic projects.

Interface type:	Micro-B Male	Installation method	Surface mount (SMT) or clip welding
Rated voltage	30V - 50V AC/DC	Rated current	1.0A - 1.8A
Contact impedance	≤ 30mΩ ~ 50mΩ	Insulation resistance	≥ 1000MΩ
Withstand voltage	100V - 500V AC (1 minute)	100V - 500V AC (1 minute)	more than 5000 times - 10000 times
Working temperature	-30℃ ~ +80℃ or -40℃ ~ +85℃	Terminal material	Copper alloy
Shell material	Stainless steel or SPCC cold-rolled steel plate,	IP rating	IP67
Flame retardant rating	UL 94-V0	Environmental Compliance	RoHS 2.0, REACH
