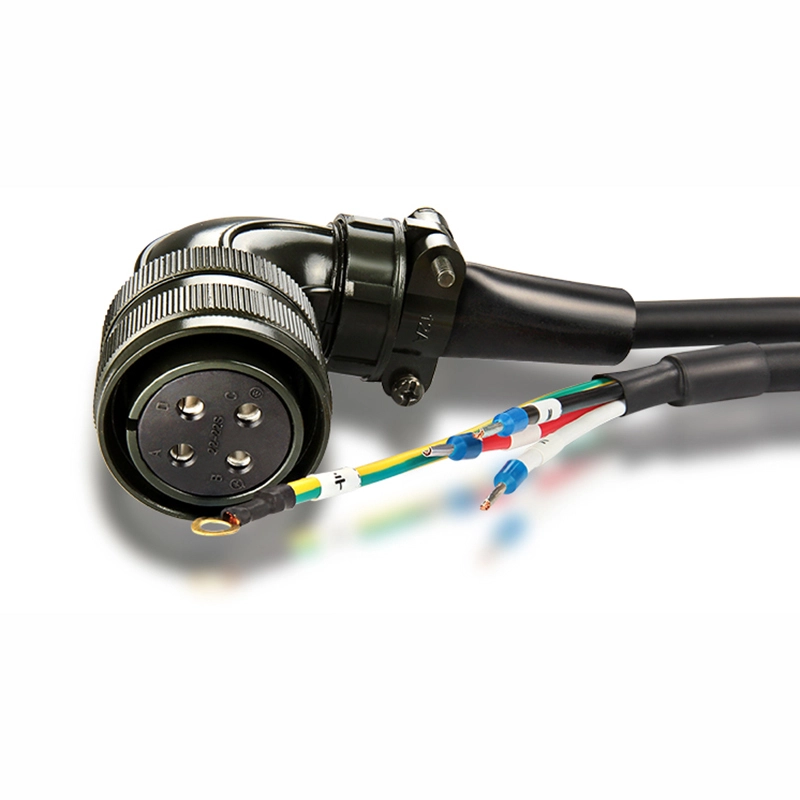

Servo High-power Power Cable, Circular Aviation Connector, Servo Motor Cable ADAMICU
It features a black outer jacket, with a circular aviation connector at one end (compatible with the power/brake interfaces of servo motors from leading brands such as Fanuc, Mitsubishi, Yaskawa, and Panasonic). The other end is a split pre-terminated design, which can be directly connected to the power terminals, brake circuits, and grounding terminals of servo drives.
This cable supports high-power applications up to 1–3kW and incorporates a shielded design. It boasts excellent characteristics including high flexibility, bend resistance, anti-electromagnetic interference (EMI), oil resistance, and wear resistance, making it ideal for high-dynamic operating environments such as drag chain systems, industrial robots, and CNC machine tools.
Engineered to meet industrial-grade safety standards, it holds CE and RoHS certifications.
Select models can operate within a wide temperature range of -40°C to +90°C, enabling reliable performance in complex industrial scenarios.
Features
Applications
| Connectors | Circular aviation connector (M23 / M40 / other custom specifications) | Connector Gender | F/M |
| Connector Orientation | Straight / Right-Angled (90°) | Pin number | 4/9 |
| AWG | 16AWG | Cable diameter | 7.0mm |
| Length | 3/5/7/8/10/15/20/25/30M | Wire core material | |
| Min.bending radius | 8 Times*OD | Max.bending cycles | ≥3000 times |
| Rated cuurent | 10-15A | Rated voltage | 600 / 1000V |
| Tensile property | 50N | Contact resistance | <4mΩ |
| Working temperature | -40°C to +105°C (PUR); -25°C to +90°C (PVC) | Contact electroplated layer | Gold |
| Jacket | PVC/PUR | Cable color | Black/Orange/Gray |
| IP rating | IP67 | Certification | UL,RoHS |
| Customized service | Length, stripping size, sheath color, interface type, etc. can all be customized | ||
