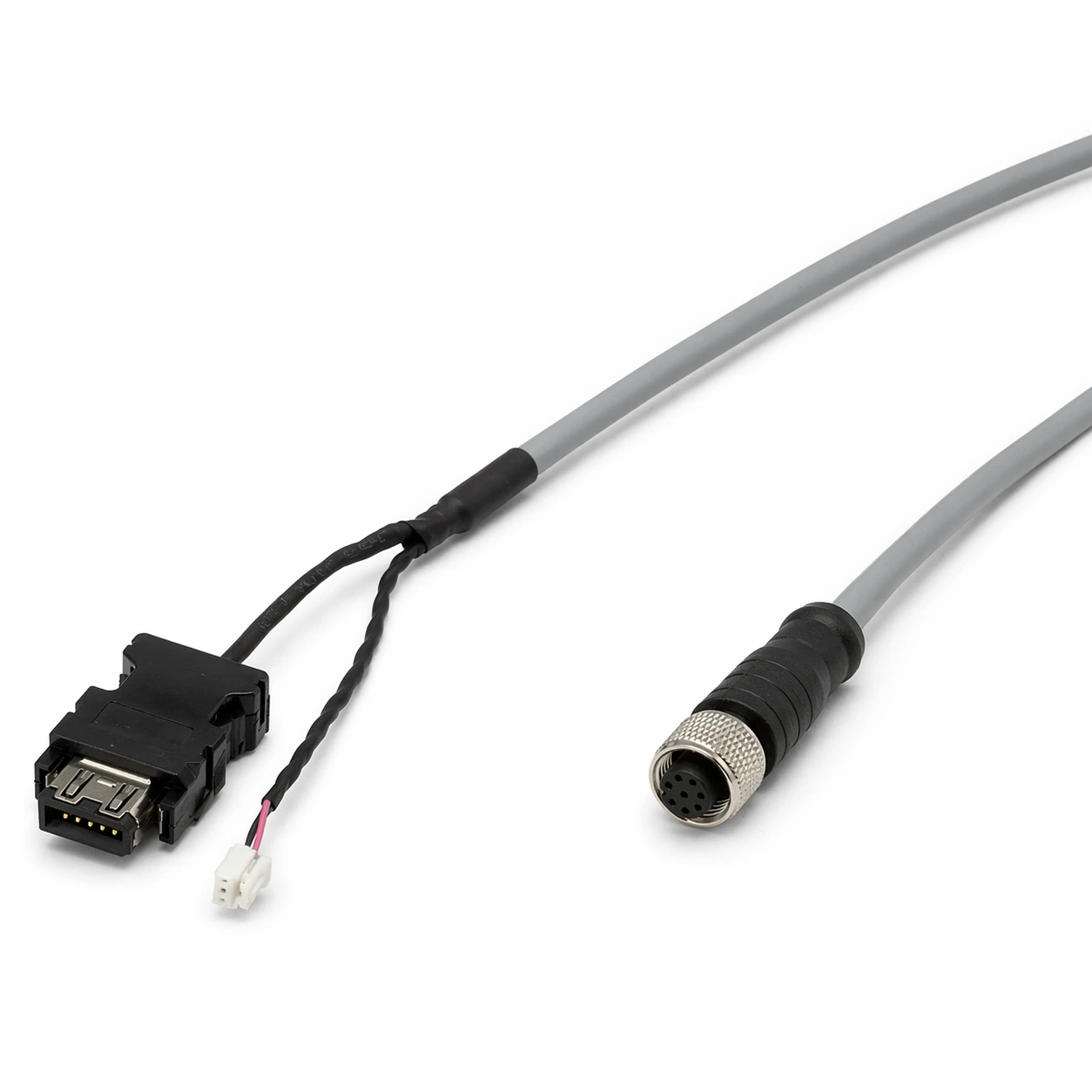

M12 8 Pin to 1394 10 Pin Encoder Cable Assembly for Servo Motor and Automation Signal Connection
Encoder cables require stable signal transmission, strong anti-interference performance and reliable wiring. This product can be customized according to customer drawings, including pin assignment, cable length, wire gauge, shielding structure, connector type and terminal configuration for long-term industrial use.
Features
Applications
ADAMICU Advantages
ADAMICU provides encoder cables, servo motor cables, M12 connector cable assemblies, industrial automation wiring harnesses, robot cables and custom industrial cable assemblies. We can support connector selection, pin assignment, cable matching and cable assembly production based on customer drawings or samples, making us suitable for long-term supply to equipment manufacturers.
| Connector P1 | M12 A-coded 8-pin Female Connector | Connector P2 | 1394 10-pin Male Connector |
| Connector P3 | PHB-3Y White Housing | Cable Specification | CF211.02.03.02, 0.25mm² * 3P+AB |
| AWG | 16AWG | Cable diameter | 7.0mm |
| P2 Contact Plating | 3U Gold Plating | Heat Shrink Tube Size | Ø8 mm |
| Shielding | Braided Shield | Terminal | PHB-T A2003-T |
| Min.bending radius | 8 Times*OD | Max.bending cycles | ≥3000 times |
| Rated cuurent | 3A | Rated voltage | DC 30V |
| Tensile property | 50N | Contact resistance | <5 mΩ |
| Working temperature | -25°C to +90°C (PVC) | Contact electroplated layer | Gold |
| Jacket material | 45P Black PVC | Cable color | Gray |
| IP rating | IP67 | Certification | UL, CE, RoHS |
| Customized service | Length, stripping size, sheath color, interface type, etc. can all be customized | ||
