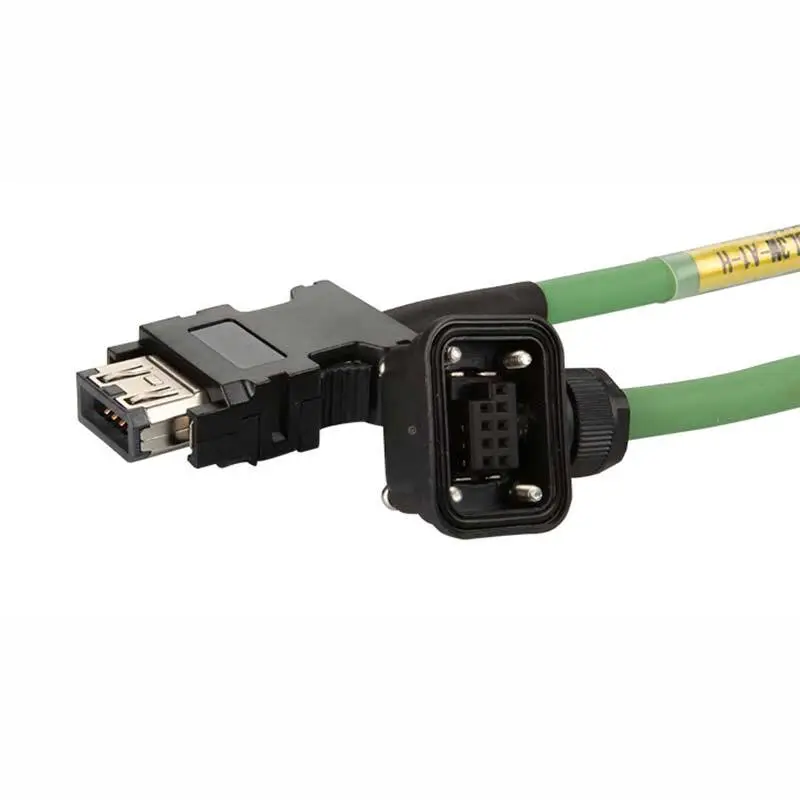

Servo coding cable IEEE1394 6-pin to Gecko connector 7-pin ADAMICU
The cable uses an IEEE 1394 6-pin male connector to connect to the driver end and a Gecko 7-pin connector to connect to the motor encoder end, meeting the stringent requirements of servo systems for high-resolution, real-time position and speed signal transmission.
It is compatible with servo drive systems from mainstream brands such as Fanuc, Mitsubishi, Siemens, and Yaskawa, enabling plug-and-play functionality without the need for additional adapters.
Features
Apllications
Used for encoder feedback signal connection between servo motors and drives.
Suitable for signal transmission between motion controllers, servo drives, encoders and actuators.
Used for robot joints, motor feedback, position detection and control system wiring.
Suitable for CNC machines, machining centers and automated production equipment.
Product Highlights
This cable assembly is designed for encoder feedback and motion control signal connection in industrial equipment requiring stable signal performance.
The locked connector structure helps reduce loosening caused by vibration, movement or long-term equipment operation.
The green cable jacket helps users quickly identify encoder cables inside control cabinets or automation equipment.
Connector type, pin assignment, cable length, labeling and cable specification can be customized according to customer drawings or samples.
| Connector 1 | Gecko connector 7-pin S0-WC7S-A620-10 | Housing | Black |
| Connector 1 terminal | Signal terminal FMC19012220 | Contact electroplated | Gold-plated |
| Connector 2 | IEEE1394 6-pin | Housing | Gray, Black |
| Connector 2 terminal | SM-6P with 4 protrusions | Cable | TRVSP 2*2*0.14 |
| Part number | AD-RM2 XX BAG | Contact electroplated | Gold-plating |
| Terminal material | Gold-plated | Shielding performance | Shielded |
| Working temperature | -35°C~80°C | Jacket | PVC |
| Cable color | Green | Certification | UL,RoHS |
| Flame retardant rating | UL 94-V0 | IP rating | IP65/lP67 |
