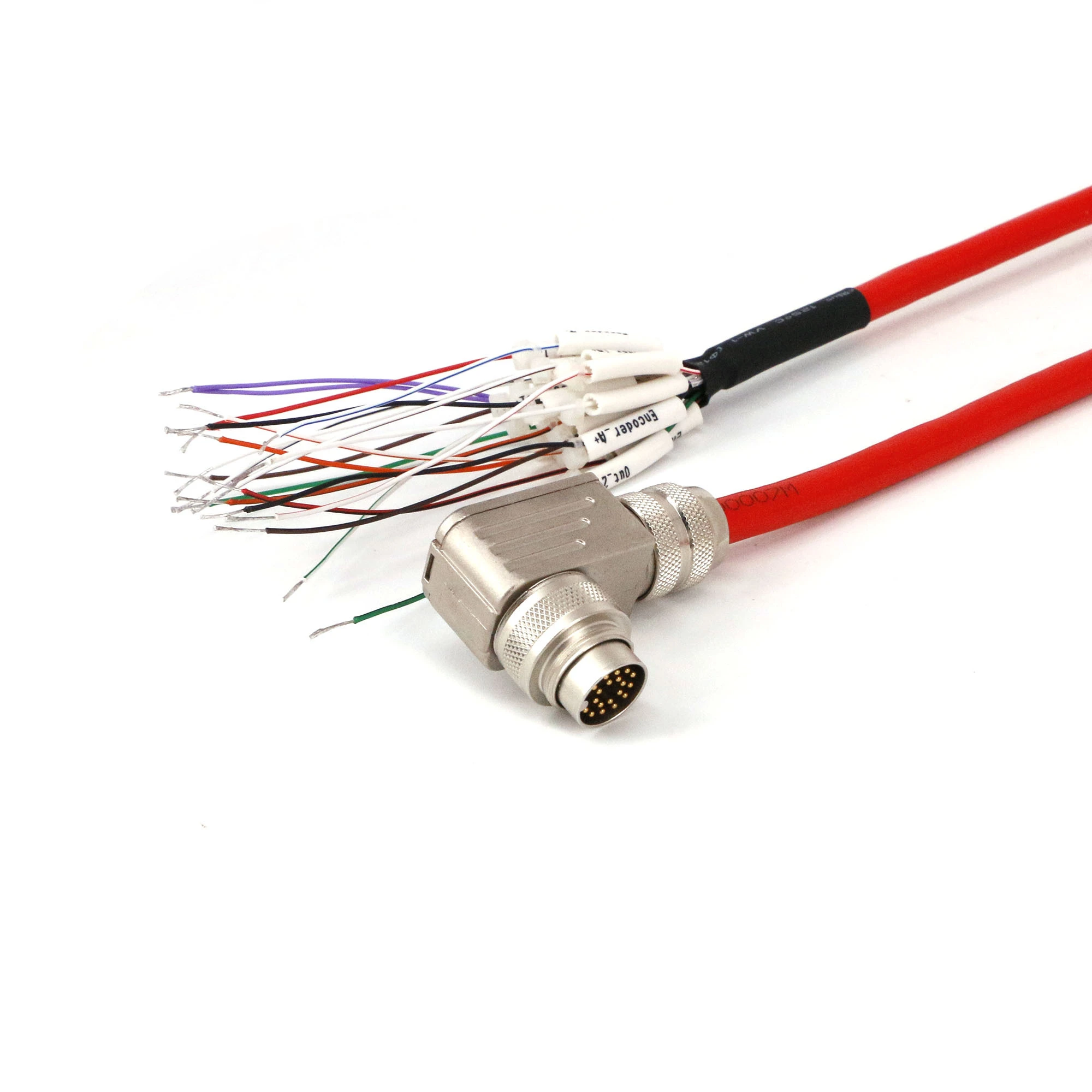

M16 19Pin Male Right-Angle/Straight Industrial Hybrid Sensor & Power Cable (IEC 61076-2-106 Compliant) ADAMICU
The product complies with the IEC 61076-2-106 industrial connector standard, adopts high‑purity oxygen‑free copper conductors and a multi‑layer shielding structure, and is fitted with an oil‑resistant, wear‑resistant industrial‑grade cable sheath. It provides stable connectivity for encoders, multi‑channel sensors, CNC machines, industrial robots, testing instruments and other equipment.
This cable assembly supports hybrid transmission of multi‑channel signals and power, integrating up to 19 channels in a single cable, which greatly simplifies the wiring layout of complex equipment. It ensures long‑term stable and reliable power and signal transmission even in harsh industrial environments with strong vibration, heavy oil contamination and high electromagnetic interference.
Features
Applications
| Connectors | M16 threaded-locking Male | Number of pins | 19 |
| Connector housing | Zinc alloy | Type | Assembly type |
| AWG | 24AWG | Cable diameter | 10.0mm |
| Length | 3/5/7/8/10/15/20/25/30M | Interface direction | 90° angled / straight type |
| Wire core material | Oxygen-free copper | Min.bending radius | 8 Times*OD |
| Max.bending cycles | ≥3000 times | Rated voltage | 30V |
| Tensile property | 50N | Contact resistance | 30MΩ |
| Working temperature | -40°C~80°C | Contact electroplated layer | Gold |
| Jacket | PVC/ PUR/ TPU | Cable color | Black/Red |
| Certification | UL,RoHS | Flame retardant rating | UL94 V-0 |
| Customization | The cable length, stripping size, interface type, sheath material, and shielding requirements, etc. can all be customized |
||
