M16 14pin Female Angle to RJ45 to Open Industrial Sensor Cable, Ethernet Cable to Transmission Signal ADAMICU

Features

  A single cable can simultaneously handle Gigabit Ethernet data transmission and multi-channel sensing, control, and power signals, replacing multiple individual cables and significantly reducing equipment wiring complexity.

  Integrated Multi-Interface Connection Solution: A composite sensor cable assembly combining an M16 14Pin circular connector, RJ45 connector, sensor signal wires, and braided shielding structure.

  Anti-Interference Shielding Design: The independent braided shielding structure helps reduce EMI/RFI interference and improves signal transmission stability.

  Stable Mass Production and Testing Control: During production, ADAM can perform continuity testing, short-circuit testing, visual inspection, and termination consistency checks to ensure that each batch meets the customer’s equipment requirements.

  Open cable end: The cable termination is stripped and tinned, allowing users to easily connect to terminal blocks or solder directly to sensor PCBs, providing high installation flexibility.

Applications

  Industrial machine vision systems: High-speed image transmission over Ethernet between industrial cameras and vision controllers, plus an integrated connection for camera power supply and I/O control signals.

  Automated measurement and control systems: Ethernet communication between multi-channel smart sensors and PLCs / industrial PCs, plus hybrid transmission of sensor signals.

  Robotics and motion control: Ethernet communication for collaborative robotic arm equipment, plus integrated wiring for multi-loop control and sensor signals.

  Smart production lines: Compact wiring for industrial Ethernet devices and on-site measurement and control terminals, compatible with a wide range of industrial Ethernet protocols.

ADAMICU Solution

ADAMICU provides customized cable assembly solutions for industrial sensor cables, machine vision cables and automation equipment connection cables.

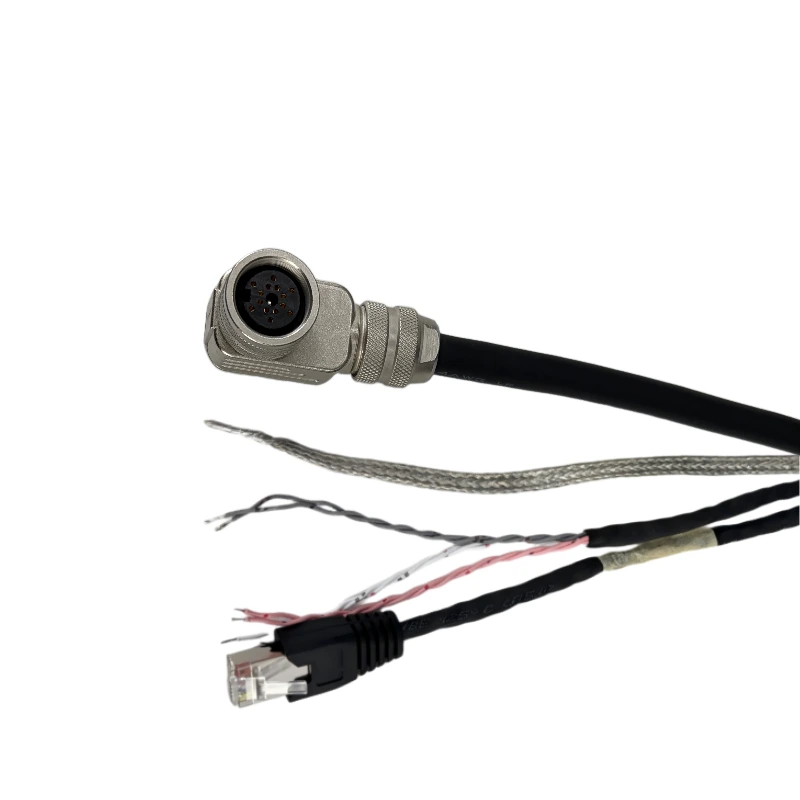

For this cable assembly, we combine a right-angle metal circular connector, RJ45 interface, exposed signal wires and braided shielding into one integrated connection solution. It is designed for applications that require stable data transmission, reliable trigger/control signals and strong EMI protection.

With in-house connector assembly, cable processing, shielding handling and testing capability, ADAMICU can customize the connector type, cable length, pin assignment, RJ45 wiring, stripping length, shielding structure, label and packaging according to customer drawings or samples.

This solution is suitable for industrial cameras, vision sensors, automation equipment, PLC systems, robot vision systems and industrial Ethernet communication.
