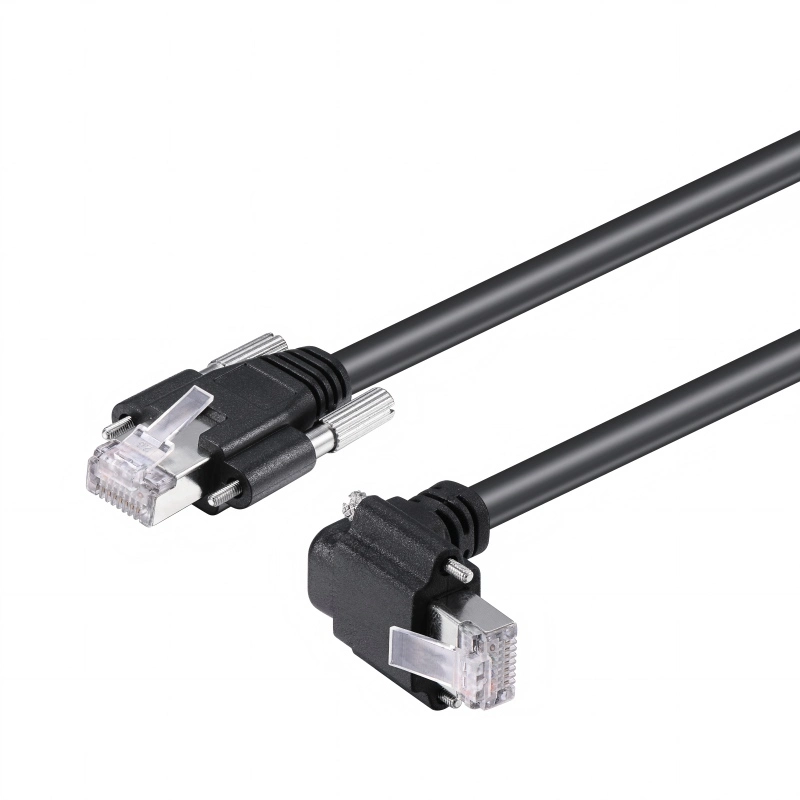

RJ45 Upward Under to RJ45 Cat.5e Cat.6 Cat.6e Ethernet Cable For Industrial Camera, Automation ADAMICU 1

RJ45 Upward Under to RJ45 Cat.5e Cat.6 Cat.6e Ethernet Cable For Industrial Camera, Automation ADAMICU 2

RJ45 Upward Under to RJ45 Cat.5e Cat.6 Cat.6e Ethernet Cable For Industrial Camera, Automation ADAMICU 3

RJ45 Upward Under to RJ45 Cat.5e Cat.6 Cat.6e Ethernet Cable For Industrial Camera, Automation ADAMICU 4

RJ45 Upward Under to RJ45 Cat.5e Cat.6 Cat.6e Ethernet Cable For Industrial Camera, Automation ADAMICU 5

RJ45 Upward Under to RJ45 Cat.5e Cat.6 Cat.6e Ethernet Cable For Industrial Camera, Automation ADAMICU

This series of high-reliability 90° angle industrial Ethernet cables are available with 90° RJ45 connectors in two outlet orientations:upward and downward. Fully compliant with Cat.5e, Cat.6 and Cat.6e Ethernet transmission standards, they are primarily engineered for industrial machine vision cameras, ADAM series automation data acquisition modules, PLC control systems, and a full spectrum of industrial Ethernet devices.
The cables supports Cat.5e, Cat.6 and Cat.6e performance grades, supporting industrial Ethernet transmission needs from 100Mbps Fast Ethernet up to Gigabit Ethernet, and even 10 Gigabit Ethernet for short-reach applications.
Its 90° angle structure effectively prevents excessive cable bending, making it ideally suited for scenarios including confined control cabinets, wall-mounted equipment, robot joints, and side interfaces of industrial cameras, ensuring stable, high-speed data transmission in harsh industrial environments.

Inquiry

Write a Review

RJ45 to RJ45 Upward display1

One end uses a straight RJ45 connector and the other end uses a right angle RJ45 connector, making cable routing more flexible in compact equipment.

RJ45 to RJ45 Upward display2

The connector design with locking screws helps keep the connection stable and reduces the risk of loosening during equipment operation.

RJ45 to RJ45 Upward display3

The right angle end is suitable for limited installation space and helps reduce cable bending stress near the connector.

Features

Designed with standard RJ45 interface, it perfectly complies with all industrial equipment with Ethernet ports, including various brands of industrial cameras (Basler, Cognex, Keyence, Hikvision robots, Dahua)

Comprehensive coverage of three transmission standards: Cat.5e (100 Mbps), Cat.6 (1000 Mbps), and Cat.6e (enhanced 1000 Mbps).

Flexible customization to meet individual project requirements.

Supports full customization in terms of cable length (0.3m - 50m), sheath material, bending direction, shielding level, cable tray / fixed installation type.

According to the individual wiring requirements of different industries and scenarios, exclusive solutions can be provided.

Applications

Industrial machine vision system: High-speed image data transmission between industrial cameras, vision controllers, and industrial control computers

Automation measurement and control system: PLCs, motion controllers' Ethernet communication

Intelligent production line: Ethernet wiring of industrial switches and on-site equipment, compatible with mainstream industrial Ethernet protocols

Robot equipment: Motion control signals and data transmission of mechanical arms and AGV carts

Industrial Ethernet equipment in industries such as rail transportation, new energy, and medical equipment have stable

FAQ

What is this RJ45 straight to right angle cable mainly used for?

This cable is mainly used for industrial Ethernet communication, control systems, automation equipment, and cabinet-side wiring where stable network connection is required.

Why use a right angle connector on one end?

The right angle connector helps save installation space and reduces cable bending stress, making it more suitable for compact equipment and tight wiring areas.

What is the advantage of the screw-lock design?

The screw-lock design helps keep the connection secure and stable, reducing the chance of loosening caused by vibration or movement during operation.

Is this cable suitable for industrial applications?

Yes. It is suitable for industrial Ethernet, machine communication, control cabinets, automation systems, and other equipment-side network connections.

Can the cable length or connector style be customized?

Yes. Cable length, connector orientation, and assembly details can be customized according to different project requirements.

Connectors	RJ45 upward/downward, RJ45	Performance rate	Cat.5e/cat.6/Cat.6e
AWG	28/26/24AWG	Cable diameter	6.0 mm - 7.0 mm
Length	3/5/7/8/10/15/20/25/30M	Shielded structure	Double shielding
Wire core material	Oxygen-free copper	Min.bending radius	8 Times*OD
Max.bending cycles	≥3000 times	Rated voltage	30V DC
Tensile property	50N	Contact resistance	30MΩ
Working temperature	-35°C~80°C	Contact electroplated layer	Gold
Jacket	PVC/PE/PUR/TPE/CPE	Cable color	Black
Certification	UL,RoHS
