Adamicu provides one-stop service for the industrial connectors & industrial cables

Ethernet Cable M12 X-coded 8 Pin Male to RJ45 For Industrial Ethernet 1

Ethernet Cable M12 X-coded 8 Pin Male to RJ45 For Industrial Ethernet 2

Ethernet Cable M12 X-coded 8 Pin Male to RJ45 For Industrial Ethernet 3

Ethernet Cable M12 X-coded 8 Pin Male to RJ45 For Industrial Ethernet 4

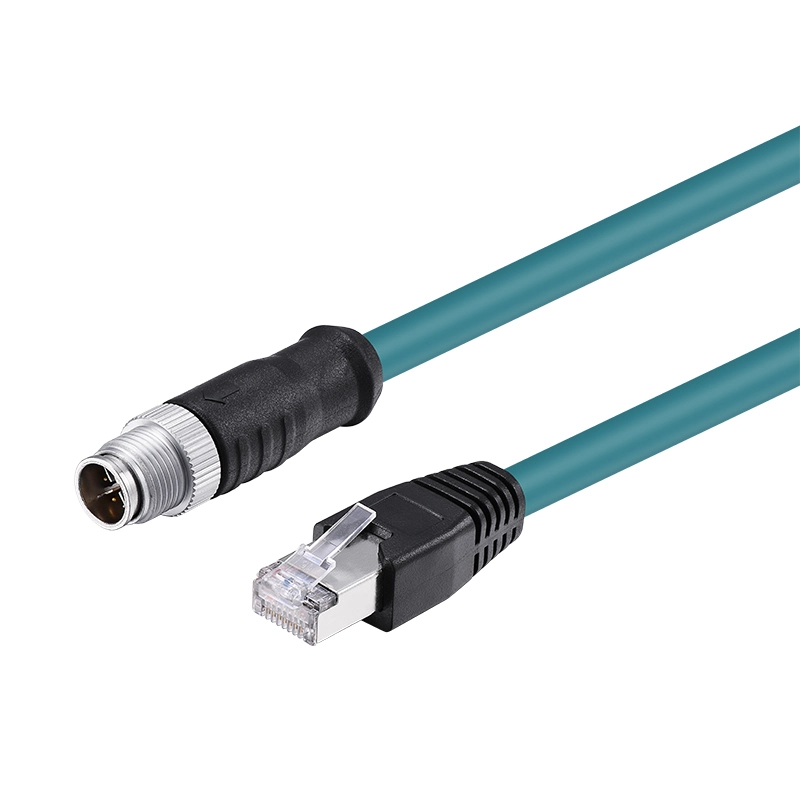

Ethernet Cable M12 X-coded 8 Pin Male to RJ45 For Industrial Ethernet

Industrial Ethernet cable is designed for harsh industrial environments. One end features an M12 X-coded 8-pin male connector, and the other end has a standard RJ45 (8P8C) interface. It is compatible with Gigabit Ethernet.The cable features an industrial-grade design, typically equipped with a wear-resistant, oil-resistant, and bend-resistant PVC sheath. The connector has an IP67 or higher protection rating, providing dust and water resistance and withstanding vibration and shock.

Its internal conductors are made of high-quality oxygen-free copper, with an independent shielding layer and a twisted-pair structure.

Inquiry

Write a Review

Durable cable assembly for industrial

The molded connector structure and rugged cable design help improve durability

M12 X-coded connector

Designed with an M12 connector on one end and an RJ45 connector on the other end

Stable Industrial Ethernet Transmission

Built for reliable signal and data transmission, it is suitable for industrial Ethernet applications

Features

High-performance transmission: Supports gigabit and even 10-gigabit Ethernet (e.g., 10Gbps).

Meeting the demands of high-speed, high-data-volume transmission.

Ensures long-term stable operation under strong electromagnetic interference, continuous vibration, and extreme temperature and humidity conditions.

Allows direct connection from field industrial equipment (such as PLCs, servo drives, vision systems, and IO-Link master stations) to standard switches, routers, or industrial PCs, simplifying network architecture.

Applications

Industrial Automation Equipment

Testing and Measurement Devices

Servo and Motion Control Systems

Machine Vision and Intelligent Equipment

Control Cabinets and System Integration

Solution

ADAMICU offers one-stop industrial connectivity solutions for machine vision and automation applications. Our M12-to-RJ45 cable assemblies help connect industrial cameras, field devices, switches, and control systems with reliable performance, flexible customization, and stable batch delivery.

With mature cable assembly capability, automated overmolding processes, customization support, semi-finished testing, and 100% inspection before shipment, ADAMICU helps customers improve wiring reliability, reduce integration difficulty, and achieve more consistent batch delivery for industrial applications.

Connectors	M12 X-Coded 8Pin Male, Cat.6 8P8C RJ45	Interface code	X-coded
AWG	26AWG	Terminal material	Gold-plated
Cable diameter	6.5mm	Tensile property	50N
Length	1M,3M,5M,10M (Customized)	Cable resistance	≤148.94Ω/km
Part number	AD-VC1 XXL3540	Connector resistance	≤10Ω
Min.bending radius	8 Times*OD	Working temperature	-35°C~80°C
Max.bending cycles	≥1000 Times	Contact electroplated	Gold-plating
Max.Voltage	30V	Jacket	PVC
Cable color	Blue	Certification	UL,RoHS
Shielding performance	Shielding	IP rating	IP65/lP67
Flame retardant rating	UL 94-V0
