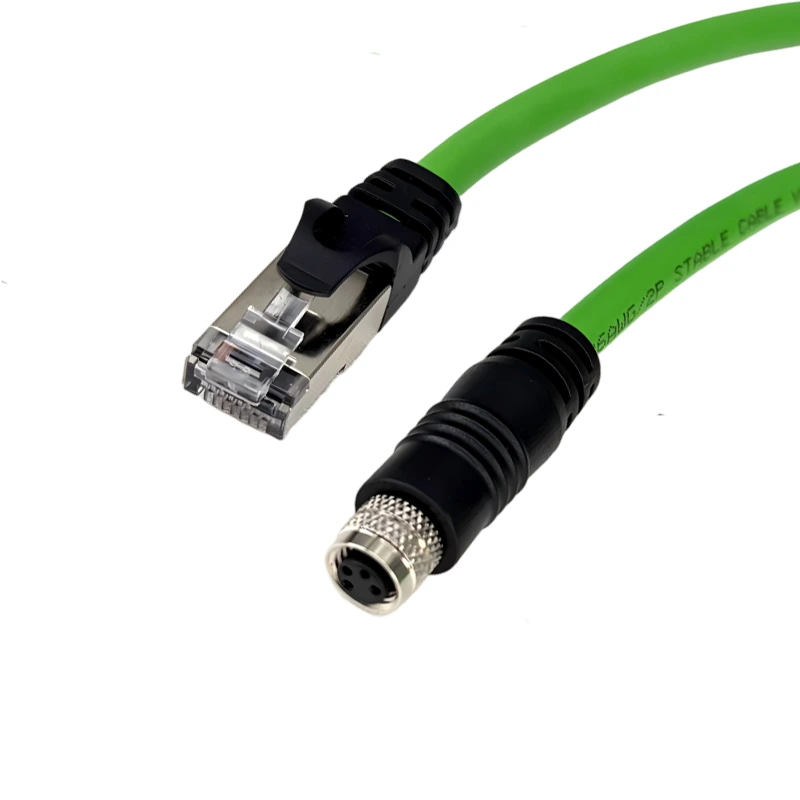

M8 A-coded 4pin Female to RJ45 Communication Cable Industrial-grade I/O Link Dedicated Connection Cable ADAMICU
The cable is used to connect I/O Link master stations (typically equipped with RJ45 interfaces) to I/O Link slave devices (such as sensors and actuators, typically with M8 interfaces), enabling simultaneous integrated transmission of bidirectional I/O Link digital communication and DC power supply for field devices within a single cable.
Constructed from CAT.5e SFTP double‑shielded industrial‑grade cable, it supports real‑time Ethernet protocols such as PROFINET and EtherCAT, ensuring signal integrity and stability in complex electromagnetic environments.
The M8 connector boasts an IP67 protection rating and a threaded locking structure, which effectively resists vibration, oil contamination, and moisture, meeting the long‑term operation requirements of harsh industrial sites.
It is compatible with I/O Link master modules, smart sensors, actuators, and industrial fieldbus devices from leading brands including Siemens, Beckhoff, Mitsubishi, and Omron.
Features
Applications
Robot and Motion Control: Stable connection of collaborative robotic arm sensors and control systems
| Connectors 1 | M8 A code 4-pin female , thread-locking, straight | Connectors 2 | RJ45 8P8C, straight |
| AWG | 26AWG, 4 Pairs | Cable diameter | 6.0 mm ±0.2 mm |
| Length | 3/5/7/8/10/15/20/25/30M | Conductor resistance | ≤ 148 Ω/km (20°C) |
| Wire core material | Oxygen-free copper | Min.bending radius | 8 Times*OD |
| Max.bending cycles | ≥500 times | Max.Voltage | 300V-500V |
| Tensile property | 50N | Contact resistance | ≤ 10 mΩ |
| Working temperature | 20°C~75°C | Contact electroplated layer | Gold |
| Jacket | PVC | Cable color | Green |
| IP rate | IP67 | Certification | UL,RoHS |
| Customized service | Length, stripping size, sheath color, interface type, etc. can all be customized. | ||
