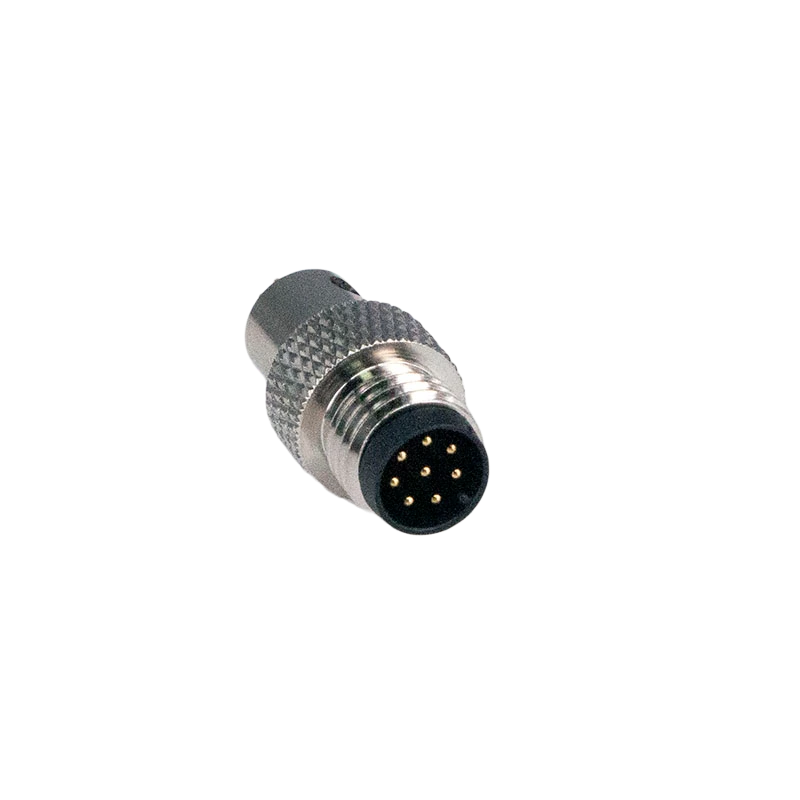

M8 8 Pin Male Industrial Circular Connector Gold-Plated Contacts 2µ ADAMICU 1

M8 8 Pin Male Industrial Circular Connector Gold-Plated Contacts 2µ ADAMICU 2

M8 8 Pin Male Industrial Circular Connector Gold-Plated Contacts 2µ ADAMICU 3

M8 8 Pin Male Industrial Circular Connector Gold-Plated Contacts 2µ ADAMICU

The ADAMICU M8 8 pin male connector is the premium high-performance solution in the realm of compact circular interfaces, representing the ultimate functional integration within the M8 form factor. Within its diminutive M8 threaded shell, it unprecedentedly accommodates eight independent gold-plated pins, pushing the boundaries of connection density and functional complexity. This enables a single cable to carry full-featured Industrial Ethernet (e.g., shielded 100/1000BASE-T), multi-axis micro servo systems, or complete drive links integrating power, feedback, brake, and communication. Its core feature of 2-micron gold-plated contacts is not merely a mark of quality but the physical foundation for parallel, interference-free transmission of high-speed data and precision analog signals, effectively suppressing the most challenging crosstalk and EMI in such a high-density layout. Coupled with a rugged all-metal housing and industrial-grade materials, it is the connector of choice for cutting-edge automation equipment where space is at an absolute premium, but performance demands are non-negotiable.

Shipping Terms:

EXW or DAP

Payment Terms:

100% T/T IN ADVANCE

Place of Origin:

Guangdong,China

Shipping Method:

Customize

Packaging:

Carton

Production Lead Time:

About 7-15 days

Inquiry

Write a Review

Deep industry experience and technical accumulation

22 years of dedicated focus: Since its establishment, we have always been dedicated to the research, development, manufacturing and service of industrial connectors and wiring harnesses. We deeply understand the connection requirements and challenges in industries such as machine vision, automation, and high-end equipment. Continuous technological iteration: Keeping pace with the development of industry technologies, from traditional interfaces to high-speed transmission protocols, we always maintain the cutting-edge nature of our products and technologies.

Why choose an M8 8Pin Male connector for your cable assembly?

For Maximum Density in Tight Spaces:The M8 8-pin represents the pinnacle of miniaturization for circular industrial connectors. It allows you to route power, multiple signals, and high-speed data through a single, ultra-compact cable, eliminating a bundle of separate wires. This is critical for modern, dense machinery like cobots, small servo motors, and modular I/O blocks where space is at a premium.

Features

Specification: M8 threaded interface, 8-pin male, circular connector.

Ultimate Density & Capability: The 8-pin design is the top-tier configuration for M8, capable of supporting complex combinations like two differential pairs (4 pins) + power (2 pins) + spare/control (2 pins), or directly carrying standard 4-pair twisted-pair Ethernet.

Industrial Strength & Reliability: Engineered for harsh industrial vibration, shock, and wide temperature ranges; the threaded locking mechanism guarantees a fail-safe connection in dynamic conditions.

Future-Oriented Interface: Perfectly adapts to advanced applications like Industrial

Ethernet (EtherNet/IP, PROFINET, etc.), all-in-one smart drive units, and high-channel-count distributed I/O.

Applications

Industrial Ethernet Field Connections: Serves as an IP67-rated field-side interface for compact industrial cameras, smart sensors, micro switches, and other Ethernet devices.

Unified Servo/Drive Cable Termination: Connects to highly integrated servo motors, transmitting power, high-resolution encoder feedback, brake, and real-time bus data over a single cable.

Multi-Channel Data Acquisition Modules: Acts as the I/O port for modules, efficiently aggregating or distributing multiple analog/digital signals.

Collaborative Robots or Lightweight Arms: Enables fully integrated connections for power, dual encoder feedback, torque sensing, and safety signals within extremely confined spaces like joints.

Connector	M8 8Pin Male	Classification	Circular Connector
Quantity of Pins	8	Terminal Material	PA66
Rubber Core	C3604, Gold-plated 2u	Outer shell	Copper
Rated current	1A	Rated voltage	30V
Nut	Copper alloy with nickel plating	Insulation resistance	≤10mΩ
Contact resistance	≥100MΩ	Plug/unplug cycles	>500 times
Working temperature	-40°C~ 85°C	Salt Spray	48H
Shielding performance	Shielding	IP rating	IP68
Flame retardant rating	UL 94-V0	Environmental Compliance	RoHS 2.0, REACH

M8 8 Pin Male Industrial Circular Connector Gold-Plated Contacts 2µ ADAMICU 15

M8 Male Drawing
