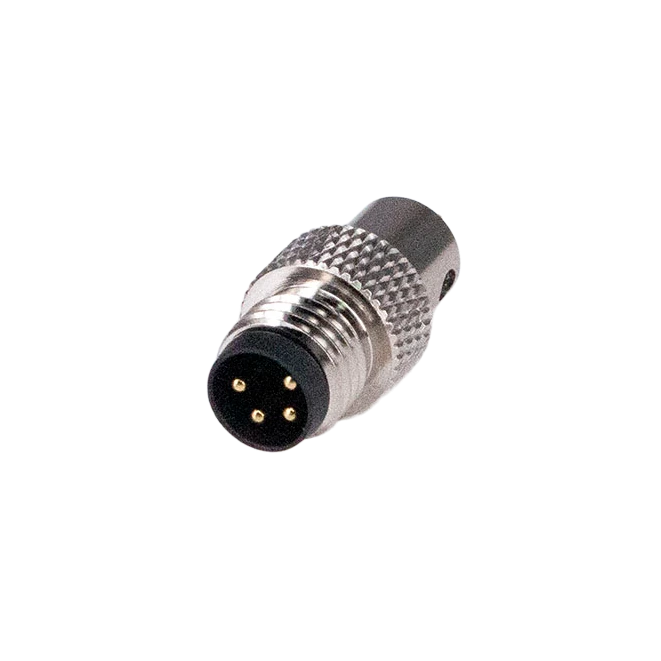

M8 4Pin Male Connector Waterproof Straight plug Wire solder Gold-plated 2u ADAMICU 1

M8 4Pin Male Connector Waterproof Straight plug Wire solder Gold-plated 2u ADAMICU 2

M8 4Pin Male Connector Waterproof Straight plug Wire solder Gold-plated 2u ADAMICU 3

M8 4Pin Male Connector Waterproof Straight plug Wire solder Gold-plated 2u ADAMICU

This M8 connector from ADAMICU is a precision industrial-grade interconnect solution designed for high-performance signal and low-to-medium current transmission. Compared to common 3-pin versions, its 4-pin configuration offers greater pinout flexibility, commonly used for power, signal, bus communication (e.g., IO-Link), or two independent circuits. Its key features lie in the internal craftsmanship: it employs high-quality gold-plated contacts (2µ" thick), which significantly reduce contact resistance, enhance signal integrity, and provide excellent corrosion and oxidation resistance. This ensures long-term electrical stability, making it particularly suitable for transmitting low-level analog signals, high-speed pulses, or data signals. The wire solder termination at the rear ensures a more robust and reliable cable connection, ideal for applications with vibration or requiring long-term maintenance-free operation. The straight plug design combined with an IP67 (or higher) ingress protection rating allows it to withstand demanding industrial environments.

Shipping Terms:

EXW or DAP

Payment Terms:

100% T/T IN ADVANCE

Place of Origin:

Guangdong,China

Shipping Method:

Customize

Packaging:

Carton

Production Lead Time:

About 7-15 days

Inquiry

Write a Review

m16 3p 1 (2)

m16 3p 1 (3)

M8 4p

Features

Interface Specification: M8 threaded interface, 4-pin male connector, straight plug.

High-quality Electrical Performance: Internal contacts are gold-plated (2μ" thick), ensuring low resistance, high conductivity, and excellent corrosion resistance, resulting in more stable signal transmission.

Reliable Connection: Tail-end welded wiring, providing a firmer connection and stronger resistance to pulling and vibration.

Excellent Protection: High-level waterproof and dustproof (IP67/IP68), suitable for humid, dusty, and environments requiring rinsing.

Application Upgrade: The 4-pin design supports more complex connection requirements, such as "power + signal + shielding" or "dual signal/power".

Applications

Intelligent sensors/IO-Link devices: Transmit device data, parameters and power.

Industrial cameras and vision systems: Provide power to the cameras and transmit trigger signals or data.

Micro servo drives/stepper motors: Provide power and control signals.

Industrial Ethernet slave devices (some types): Compact connections for 100-megabit industrial Ethernet.

Highly demanding detection instruments: Transmit analog or digital signals with high requirements for signal quality.

Connector	M8 4Pin Male	Classification	Circular Connector
Quantity of Pins	4	Terminal Material	PA66
Rubber Core Material	C3604, Gold-plated 2u	Outer shell	Copper
Nut	Copper alloy with nickel plating	Rated voltage	60V
Rated current	3A	Insulation resistance	≤10mΩ
Contact resistance	≥100MΩ	Plug/unplug cycles	>500 times
Working temperature	-25°C~ 85°C	Salt Spray	48H
Shielding performance	Shielding	IP rating	IP67
Flame retardant rating	UL 94-V0	Environmental Compliance	RoHS 2.0, REACH

M8 4Pin Male Connector Waterproof Straight plug Wire solder Gold-plated 2u ADAMICU 18

M8 Male Drawing
