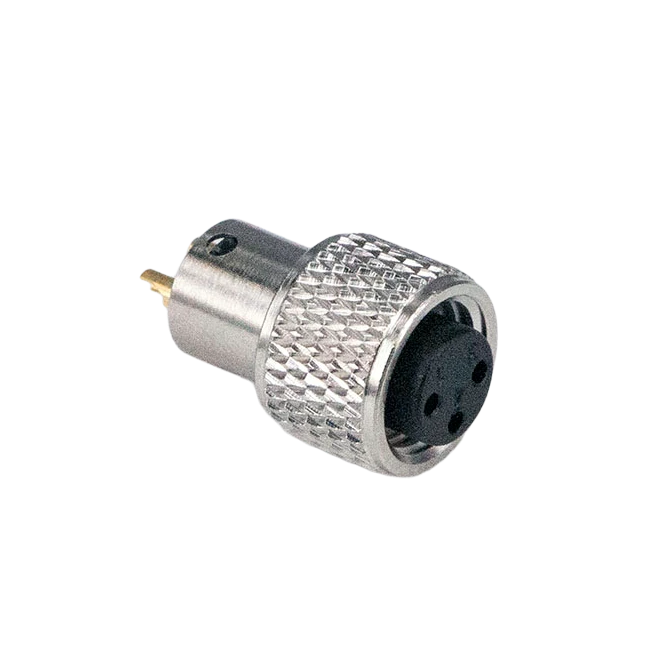

M8 3-pin Female Gold-plated 2u Connector ADAMICU 1

M8 3-pin Female Gold-plated 2u Connector ADAMICU 2

M8 3-pin Female Gold-plated 2u Connector ADAMICU 3

M8 3-pin Female Gold-plated 2u Connector ADAMICU 4

M8 3-pin Female Gold-plated 2u Connector ADAMICU

This M8 connector from ADAMICU serves as the standard receptacle interface mounted directly on equipment. As a 3-pin female, straight socket, it is typically pre-installed on device side (such as sensors, actuators, I/O modules, or control cabinets) to provide a quick, secure mating point for corresponding male plugs. It features the same high level of ingress protection (typically IP67), safeguarding the equipment port from water, oil, and dust in harsh industrial environments, thereby ensuring long-term electrical reliability. Its robust metal-threaded housing and effective sealing construction withstand continuous mechanical stress and vibration, making it a critical component for enabling “plug-and-play” functionality and easy maintenance of equipment.

Shipping Terms:

EXW or DAP

Payment Terms:

100% T/T IN ADVANCE

Place of Origin:

Guangdong,China

Shipping Method:

Customize

Packaging:

Carton

Production Lead Time:

About 7-15 days

Inquiry

Write a Review

m16 3p 1 (2)

m16 3p 1 (3)

m16 3p 2 (3)

Features

Interface Specification: M8 threaded interface, 3-pin female connector, straight socket.

Device-side Interface: Specifically designed for installation on fixed equipment, serving as standard input/output ports.

Comprehensive Protection: After the plug is fitted, the entire interface achieves a high level of waterproof and dustproof protection, safeguarding the internal circuits of the equipment.

Reliable Locking: The internal threaded part and the external threaded part of the male connector are tightened together to form a secure connection that is resistant to vibration and prevents loosening.

Wide Applicability: It is the standard interface for all M8 3-pin male cable connections, with strong versatility.

Applications

Connection ports of sensors/actuators

Signal input/output ports of PLC remote I/O modules

Power and signal interfaces of small drivers

External device interfaces of outdoor electrical control boxes

Connector	M8 3Pin Female	Classification	Circular Connector
Quantity of Pins	3	Terminal Material	PA66
Rubber Core Material	C3604, Gold-plated 2u	Outer shell	Copper
Nut	Copper alloy with nickel plating	Rated voltage	60V
Rated current	3A	Insulation resistance	≤10mΩ
Contact resistance	≥100MΩ	Plug/unplug cycles	>500 times
Working temperature	-25°C~ 85°C	Salt Spray	96H
Shielding performance	Shielding	IP rating	IP67
Flame retardant rating	UL 94-V0	Environmental Compliance	RoHS 2.0, REACH

M8 3-pin Female Gold-plated 2u Connector ADAMICU 18

M8 Drawing
