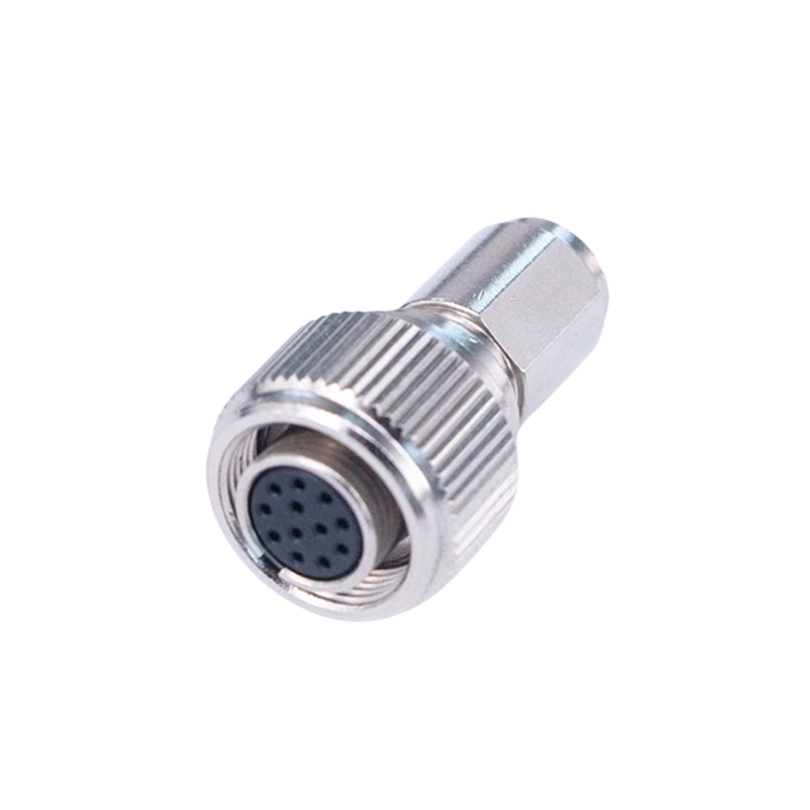

M12 A-coded 12 Pin Female Wire solder Waterproof Circular Connector ADAMICU
M12 A-coded 12 pin female wire solder Connector.
It uses PA66 black plastic body, C3604 material for terminals with gold plating 2u treatment, copper shell is copper alloy with nickel plating structure, and is equipped with silicone black waterproof ring for enhanced protection.
This product is compatible with M12 threaded connections and uses a wire solder process.It has stable conductivity, high protection level, and is suitable for industrial sensors with 12-pin female connection requirements.
It uses PA66 black plastic body, C3604 material for terminals with gold plating 2u treatment, copper shell is copper alloy with nickel plating structure, and is equipped with silicone black waterproof ring for enhanced protection.
This product is compatible with M12 threaded connections and uses a wire solder process.It has stable conductivity, high protection level, and is suitable for industrial sensors with 12-pin female connection requirements.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Features
Applications
FAQ
1
What is this 12 pin circular connector used for?
This connector is used for stable signal or power connection in industrial equipment, control systems, panel interfaces, and cable assembly applications.
2
Does this product include both plug and receptacle?
Yes. Based on the product configuration shown, it includes a female cable plug and a matching male panel mount receptacle for complete connection use.
3
Is the connection stable during use?
Yes. The threaded locking structure helps keep the connector firmly connected and reduces the risk of loosening during equipment operation.
4
Can ADAMICU provide matching cable assembly?
Yes. ADAMICU can supply the connector separately or provide matching cable assembly solutions according to different project requirements.
5
Is this connector suitable for industrial applications?
Yes. With its metal housing and secure locking structure, it is suitable for industrial environments that require reliable and durable connections.
| Connectors | M12 A-coded 12Pin Female Wire solder | Classification | Circular Connector |
| Quantity of Pins | 12 | Interface code | A-coded |
| Part number | M12-12F-A00-002 | Terminal material | C3604 Gold-plated 2U |
| Rubber core material | Plastic PA66, Black color | M12 copper shell | M12 thread, Copper alloy nickel plating |
| Waterproof ring | Silicone, Black color | Rated current | 1A |
| Rated voltage | 30V | Insulation resistance | ≥100mΩ |
| Contact resistance | ≤10mΩ | Plug/unplug cycles | ≥500 times |
| Working temperature | -25℃~80℃ | Salt spray | 48h |
| Shielding performance | Shielding | IP rating | IP65/lP67 |
| Flame retardant rating | UL 94-V0 |
