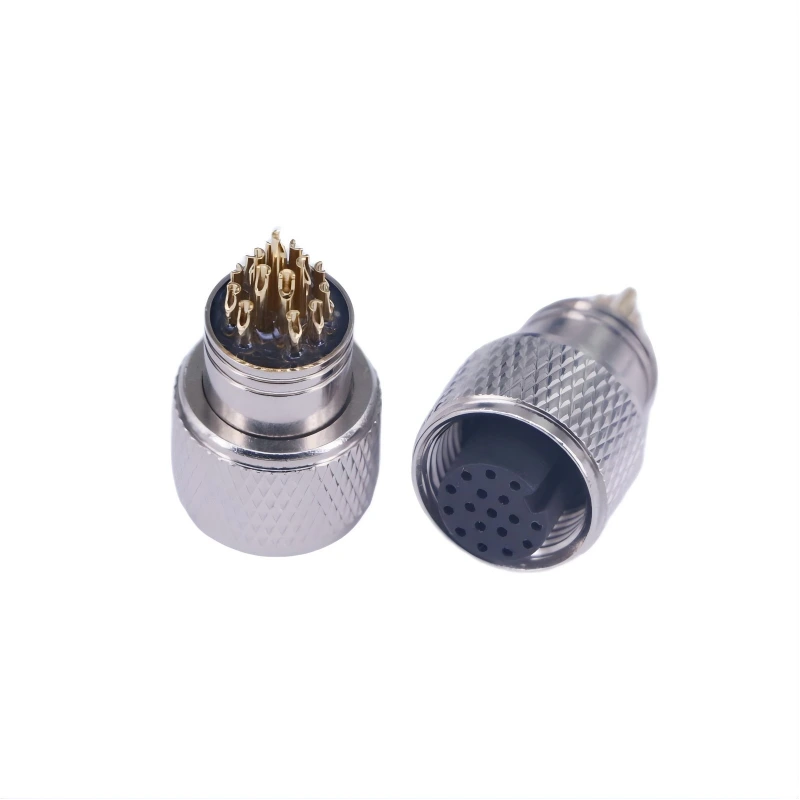

The M12 17 pin female A-coded solder type circular connector is designed for compact industrial systems that require high pin count, stable mating, and reliable multi-signal transmission. It is suitable for automation modules, testing systems, control cabinets, and custom cable assembly applications.
The female contact structure is designed to mate with the corresponding male connector while helping maintain orderly contact alignment and stable electrical connection. Combined with a metal housing and threaded coupling design.

Inquiry

Write a Review

M12 17 F display1

The 17 pin female layout helps consolidate more signal paths into one connector, reducing the need for multiple separate interfaces.

M12 17 F display2

For equipment with concentrated layout requirements, this connector helps keep the interface area more organized and efficient.

M12 17 F display3

Its solder type design makes it easier to adapt to customized cable lengths, pin assignments, and project-specific wiring requirements.

Features

High-density 17 pin arrangement: Supports complex signal routing through one compact connector interface.

Female socket configuration: Designed for secure mating with corresponding male connectors in multi-pin industrial applications.

A-coded interface design: Suitable for industrial automation and multi-function signal connection scenarios.

Threaded locking connection: Helps maintain secure coupling and reduce loosening in equipment operation.

Metal shell construction: Provides better structural strength and supports shielding performance.

Gold-plated contact surface: Improves conductivity consistency and supports long-term connection reliability.

Solder type termination: Convenient for customized cable assembly and project-based wiring.

Applications

Suitable for compact automation equipment that needs multiple signal paths within a limited panel or assembly space

Well suited for intelligent equipment with concentrated wiring and multiple control or feedback signals.

Suitable for cabinet-side interconnection and harness integration where a higher number of contacts is required.

Applicable to motion control assemblies, precise positioning systems, and equipment requiring stable signal matching.

FAQ

What is this M12 17 pin female A-coded connector mainly used for?

This connector is mainly used in industrial systems that require multiple signal channels in one compact interface. It is suitable for automation modules, testing equipment, control cabinets, machine vision systems, and custom cable assembly applications.

Is this connector suitable for high-density wiring systems?

Yes. The 17 pin design allows more contacts to be integrated into one connector, which helps reduce interface quantity and improve wiring efficiency in compact equipment.

Can this connector be used for custom cable assembly?

Yes. The solder type termination makes it suitable for custom cable projects. It is convenient for different cable lengths, wiring definitions, and project-based harness requirements.

Does the connector support stable multi-signal transmission?

Yes. The high pin count layout is designed to support multi-signal transmission through one interface, making it a practical solution for complex equipment connections.

Connectors	M12 A-coded 17Pin Female	Classification	Circular Connector
Quantity of Pins	17	Part number	M12-17F-A00-003, M12-12M-A00-003
Terminal material	C3604 Gold-plated 2U	Rubber core material	PA66
Shielding case	Steel alloy	Waterproof ring	Silicone
Outer shell	Steel alloy	Rated current	1A
Rated voltage	30V	Insulation resistance	≤10mΩ
Contact resistance	≥100mΩ	Plug/unplug cycles	≥500 times
Working temperature	-40℃~85℃	Salt spray	48h
Shielding performance	Shielding	IP rating	IP65/lP67
Flame retardant rating	UL 94-V0

M12 17pin Female Connector Drawing
