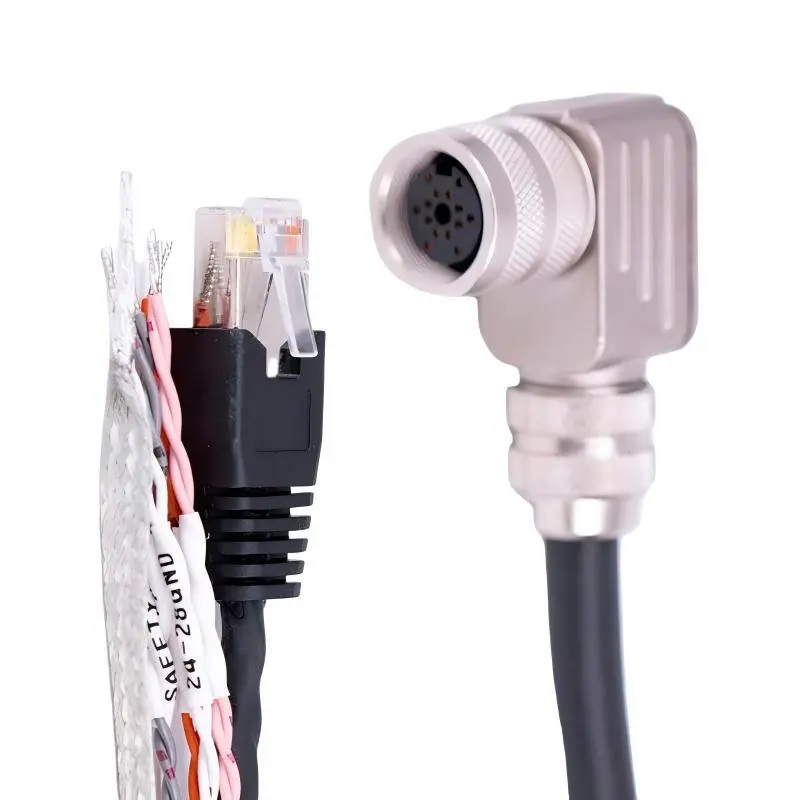

LMI PE Cable M14 14pin to RJ45 For LMI Gocator 3D Vision Sensor, 3D Sensor and Control System
This cable uses an M14 14-pin connector as the main end, with an industrial-grade RJ45 connector to open integrated on the other end. It enables synchronous transmission of sensor power, real-time 3D cloud data transmission, and safety control signals, and is widely used in industrial scenarios such as automated inspection, dimensional measurement, and defect identification.
Features
Applications
| Connectors | M14 14-pin Metal Female, twist-lock locking to RJ45 | Connector Type | Straight / Right-Angle (90°) Optional |
| AWG | 20/24AWG | Cable diameter | 7.0mm |
| Length | Length (0.5m~50m) | Shielded structure | Dual Shielding ( Coverage ≥85%) |
| Wire core material | Oxygen-free copper | Min.bending radius | 8 Times*OD |
| Bending cycles | ≥5 million times | Rated Voltage | 30V AC / 60V DC |
| Rated Current | 1.5A per core | Impedance Characteristic | 100Ω ±15% (Differential Signals) |
| Working temperature | -40°C~80°C | Contact electroplated layer | Gold |
| Jacket | PVC/TPU | Cable color | Black (Customizable) |
| Certification | UL,RoHS | Customization options | Length, Pinout Definition, Connector IP Rating, Jacket Color |
