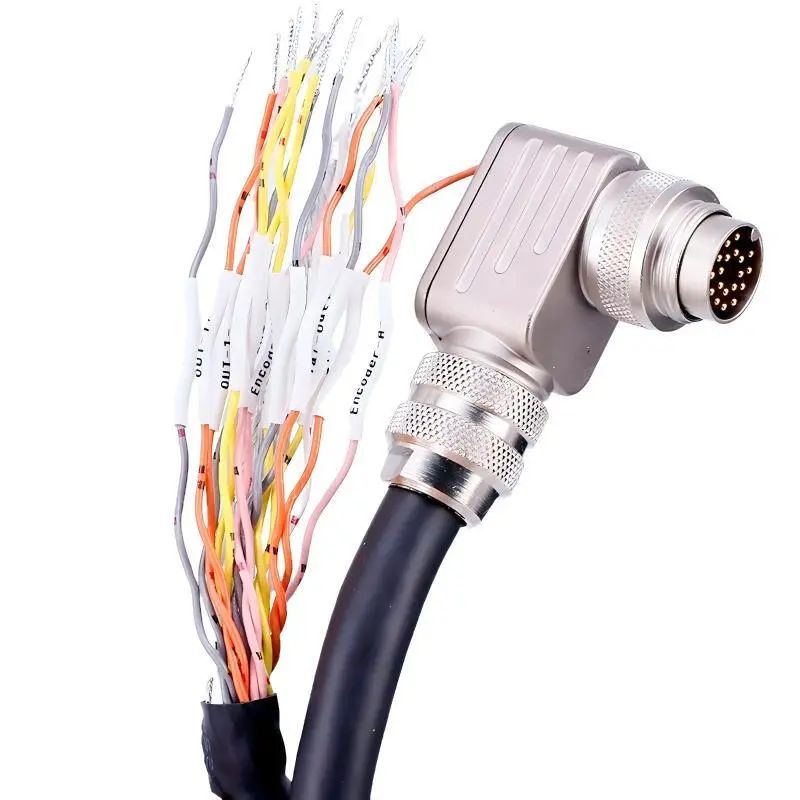

LMI IO 19-pin Male Connector Industrial Cable For Encoder / IO Control Module ADAMICU
This series of cables uses metal male connectors and supports both straight and right-angle (90° bend) connector structures, which can flexibly meet the needs of compact equipment space and complex wiring. They are widely used in industrial robots, automated production lines, precision testing systems and other scenarios with strict requirements for signal stability and anti-interference capabilities.
Features
Applications
| Connectors | M12 19pin Male Assembled type to open | Connector Type | Straight / Right-Angle (90°) Optional |
| AWG | 24/26AWG | Cable diameter | 7.0mm |
| Length | Length (0.5m~50m) | Shielded structure | Dual Shielding ( Coverage ≥85%) |
| Wire core material | Oxygen-free copper | Min.bending radius | 8 Times*OD |
| Bending cycles | ≥5 million times | Rated Voltage | 30V AC / 60V DC |
| Rated Current | 1.5A per core | Impedance Characteristic | 100Ω ±15% (Differential Signals) |
| Working temperature | -40°C~80°C | Contact electroplated layer | Gold |
| Jacket | PVC/TPU | Cable color | Black |
| Certification | UL,RoHS | Customization options | Length, Pinout Definition, Connector IP Rating, Jacket Color |
