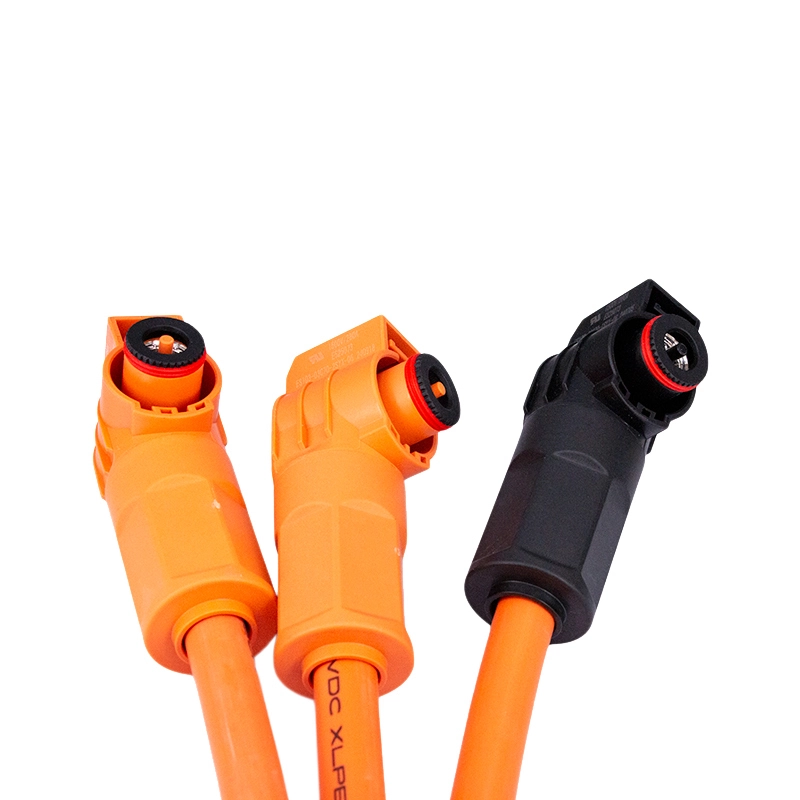

EV Cable PCS Energy Storage For High Voltage and Energy Storage
This EV high voltage connector cable assembly is designed for electric vehicles, battery packs, energy storage systems, high voltage distribution boxes, motor controllers, and charging equipment.
It uses XLPE insulation and multi-strand fine tin-plated copper conductors, offering excellent high-voltage resistance, heat resistance, flame retardancy, oxidation resistance, and flexibility.
With a rated voltage of up to 1500V, mating cycles of over 500 times, and IP65 / IP67 protection performance, this cable assembly is suitable for high-voltage, high-current, vibration, and harsh temperature environments.
Features
With a rated voltage of up to 1500V, this product is suitable for power transmission in electric vehicles, energy storage systems, and high-voltage power distribution systems.
Made with multi-strand fine tin-plated copper conductors, providing good conductivity, flexibility, oxidation resistance, and stable current transmission.
The cable uses XLPE insulation, offering excellent resistance to high voltage, heat, aging, and electrical stress.
Standard working temperature range is from -40°C to 125°C. Some application areas can reach -50°C to 150°C, making it suitable for harsh operating environments.
The connector provides reliable dustproof and waterproof performance, suitable for battery packs, vehicle chassis, outdoor charging equipment, and energy storage systems.
The connector supports more than 500 plug/unplug cycles, ensuring long-term connection reliability and easy maintenance.
The material meets UL 94-V0 flame retardant requirements, improving safety in high-voltage applications.
Applications
Customization Available
Can be customized according to customer drawings or samples:
📍 Cable length
📍 Cable specification
📍 Connector angle
📍 Terminal type
📍 Waterproof rating
📍 Shielding structure
📍 Packing method
| Insulating material | XLPE | Plug/unplug cycles | ≥500 times |
| Conductor | Multi-strand fine tin-plated copper | Certification | IEC62893,RoHS,REACH |
| Rated voltage | 1500V | IP rating | IP65/lP67 |
| Working temperature | -40℃~125℃ (some areas reach -50℃~150℃) | Flame retardant rating | UL 94-V0 |
