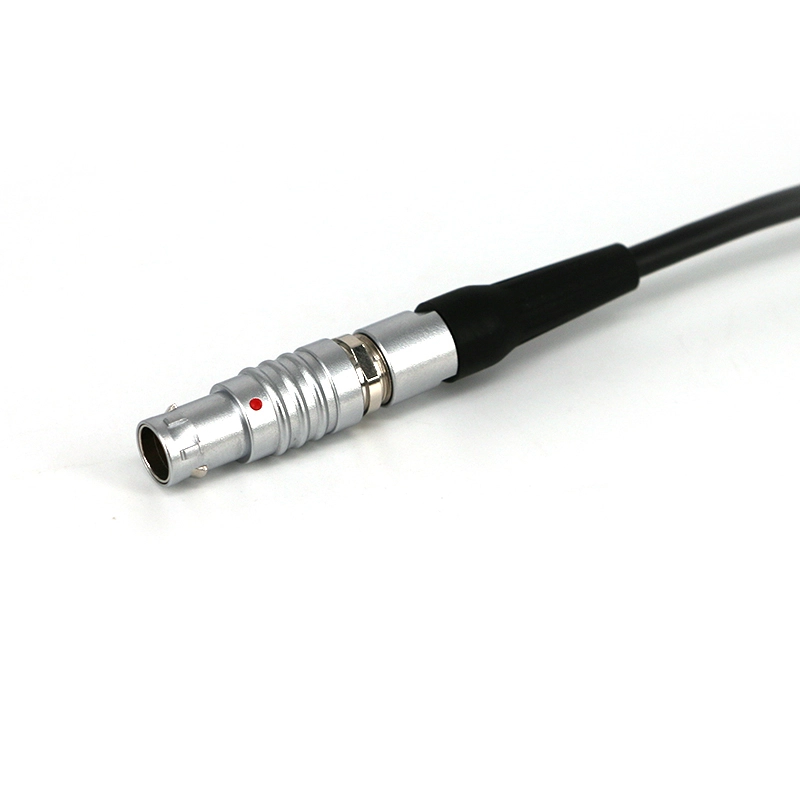

B Series Push-Pull Self-Locking Connector 2 to 32 Cores 00B to 3B ADAMICU 1

B Series Push-Pull Self-Locking Connector 2 to 32 Cores 00B to 3B ADAMICU 2

B Series Push-Pull Self-Locking Connector 2 to 32 Cores 00B to 3B ADAMICU 3

B Series Push-Pull Self-Locking Connector 2 to 32 Cores 00B to 3B ADAMICU 4

B Series Push-Pull Self-Locking Connector 2 to 32 Cores 00B to 3B ADAMICU 5

B Series Push-Pull Self-Locking Connector 2 to 32 Cores 00B to 3B ADAMICU 6

B Series Push-Pull Self-Locking Connector 2 to 32 Cores 00B to 3B ADAMICU 7

B Series Push-Pull Self-Locking Connector 2 to 32 Cores 00B to 3B ADAMICU

The B Series Push-Pull Self-Locking Connector is a high-performance circular connector featuring a quick connect/disconnect self-locking system. Reliable locking is achieved through a simple axial push, while separation is easily accomplished by pulling the unlocking sleeve.

The product incorporates a 360° full shielding design, providing excellent electromagnetic compatibility (EMC) protection to ensure signal transmission integrity and stability. The connector shell is constructed from high-strength metal materials with a sophisticated surface finish, offering outstanding corrosion resistance and vibration resistance.

The B Series is available in multiple shell sizes ranging from 00B to 3B, with contact configurations covering 2 to 32 cores, meeting diverse connection requirements in industries such as industrial automation, medical equipment, test and measurement, military and aerospace, as well as audio and video applications.

Inquiry

Write a Review

金属圆形B系列3 (5)

金属圆形B系列3 (9)

金属圆形B系列3 (7)

Features

Quick Push-Pull Self-Locking System: With a unique self-locking mechanism, the plug can be automatically locked by simply pushing it axially, and the connection can be disconnected by pulling the unlocking sleeve.

Five housing sizes are available: 00B, 0B, 1B, 2B, and 3B, with pin configurations ranging from 2 to 32 pins, meeting different signal and power transmission needs.

It supports various contact termination methods such as solder type, crimp type, and PCB mount type (straight or right-angle), adapting to different application scenarios and assembly process requirements.

The contacts are made of copper alloy with gold plating, featuring low contact resistance and strong oxidation resistance.

Applications

Industrial automation

Medical equipment (endoscopes, patient monitors, ultrasound devices)

Test and measurement instrumentation

Military and aerospace

Audio and video broadcasting equipment

Research and experimental setups

Robotics and motion control systems

Connectors	Push-pull self-locking	Classification	Circular Connector
Quantity of Pins	2-32 cores	Shell Size	00B / 0B / 1B / 2B / 3B
Contact Material	Gold-plated copper alloy	Outer shell	Copper
Rated current	00B/0B: 1.5A-6.5A; 1B/2B/3B: up to 10A-15A	Rated voltage	00B/0B: 300V-400V; 1B/2B/3B: 400V - 500V
Coupling Mechanism	Push-Pull Self-Locking	Insulation resistance	≥ 10¹² Ω
Contact resistance	≤ 3.8 mΩ - 5 mΩ	Plug/unplug cycles	>5000 times
Working temperature	-25°C~ 250°C	Salt Spray	96H
Shielding performance	Shielded	IP rating	IP50
Flame retardant rating	UL 94-V0	Environmental Compliance	RoHS 2.0, REACH
