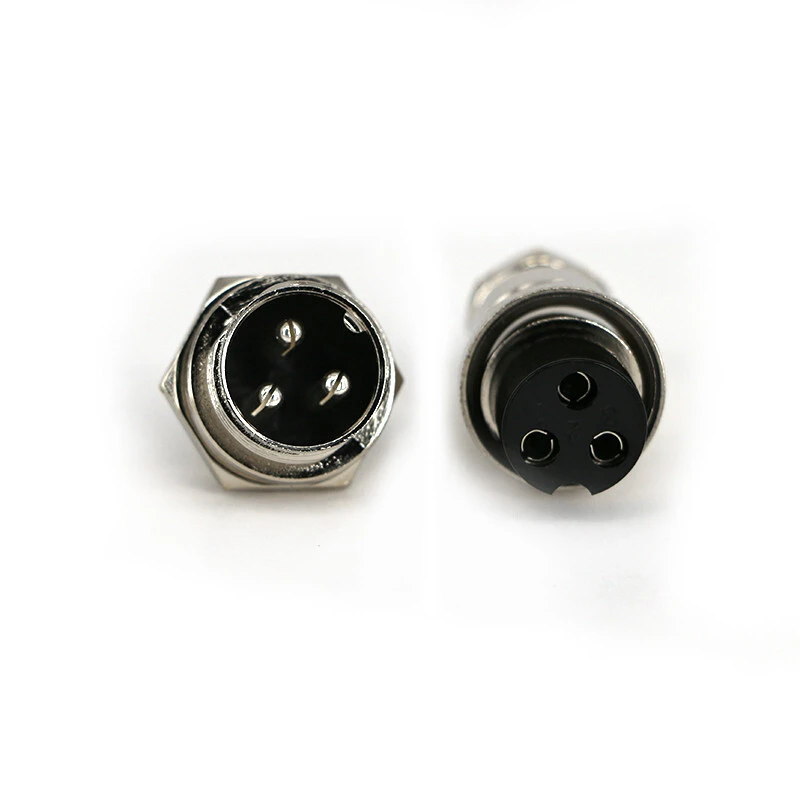

M16 GX16 Waterproof Aviation Connector 3-hole Aviation Plug 2/3/4/5/6/7/8-pin Aviation Connector Manufacturer ADAMICU 1

M16 GX16 Waterproof Aviation Connector 3-hole Aviation Plug 2/3/4/5/6/7/8-pin Aviation Connector Manufacturer ADAMICU 2

M16 GX16 Waterproof Aviation Connector 3-hole Aviation Plug 2/3/4/5/6/7/8-pin Aviation Connector Manufacturer ADAMICU 3

M16 GX16 Waterproof Aviation Connector 3-hole Aviation Plug 2/3/4/5/6/7/8-pin Aviation Connector Manufacturer ADAMICU

The M16/GX16 series waterproof aviation plug is a high-performance circular electrical connector featuring a 16mm diameter threaded interface. The shell is constructed from metal materials such as zinc alloy (chrome-plated) or brass (nickel-plated), offering excellent mechanical strength and environmental resistance. The product is available in various pin configurations from 2/3/4/5/6/7/8 pins, with both male and female options. It utilizes a three-hole flange mounting method, designed to meet panel fixation requirements.

The connector achieves a secure connection via a threaded locking mechanism and, combined with its sealing design, attains an IP67 protection rating, effectively resisting dust, water, and vibration. It is widely used in fields such as industrial automation, sensors, instrumentation, servo motors, and communication equipment.

Inquiry

Write a Review

m16 3p 1 (2)

m16 3p 1 (3)

m16 3p 2 (3)

Features

Solid copper pins with silver plating: Durable for repeated mating cycles and resistant to oxidation.

Three-hole flange mounting for stability: Features a standard three-hole flange design with evenly distributed mounting holes, ensuring secure panel fixation and effective resistance to vibration and impact, ideal for long-term fixed installation on equipment panels.

Housing passes salt spray test (≥96 hours): Suitable for long-term industrial operation.

Operating temperature range from -50°C to +70°C (available in variants up to -40°C to +85°C): Ensures reliable performance in various harsh environments.

Applications

Industrial Automation: Automated production lines, PLC control panels, industrial robots, I/O module connections

Sensors and Actuators: Proximity sensors, photoelectric sensors, pressure sensors, encoders, cylinder connections

Servo Motors: Servo motor encoder feedback, power and control circuit connections

Instrumentation: Test and measurement equipment, data acquisition systems, laboratory instruments

Communication Equipment: Communication base stations, network equipment, fiber optic transmission systems

Medical Equipment: Medical instruments, monitoring equipment, diagnostic systems

Connectors	GX16 / M16 series	Classification	Circular Connector
Quantity of Pins	2-8 pin	Mounting	Three-hole flange mounting method
Contact Material	Gold-plated copper alloy	Outer shell	Copper
Rated current	5A - 25A	Rated voltage	250V - 400V
Coupling Mechanism	Screw-threaded coupling	Insulation resistance	≥ 10¹² Ω
Contact resistance	≤ 3.8 mΩ - 5 mΩ	Plug/unplug cycles	>5000 times
Working temperature	-50°C~ 70°C	Salt Spray	96H
Shielding performance	Shielded	IP rating	IP50
Flame retardant rating	UL 94-V0	Environmental Compliance	RoHS 2.0, REACH
