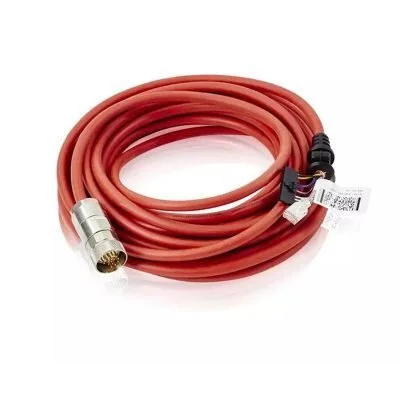

ABB Teach Pendant Cable for DSQC679 3HAC028357-001 ADAMICU 1

ABB Teach Pendant Cable for DSQC679 3HAC028357-001 ADAMICU 2

ABB Teach Pendant Cable for DSQC679 3HAC028357-001 ADAMICU 3

ABB Teach Pendant Cable for DSQC679 3HAC028357-001 ADAMICU 4

ABB Teach Pendant Cable for DSQC679 3HAC028357-001 ADAMICU 5

ABB Teach Pendant Cable for DSQC679 3HAC028357-001 ADAMICU

On the automated production line, industrial robots are like dexterous giant arms, while the soul and precise instructions they possess come from the "intelligent terminal" in the hands of engineers - the ABB FlexPendant teaching device. However, the "central nerve" connecting this "intelligent brain" to the robot control cabinet is precisely that crucial special cable: the ABB Teach Pendant Cable for DSQC679, part number 3HAC028357-001.
The ABB IRC5 robot control system is one of the most widely used industrial robot controllers in the world today. The FlexPendant teaching device is the core interface for operators to interact with the IRC5 system, used to complete all key tasks such as manual operation, program writing, parameter setting, status monitoring, and fault diagnosis.
The cable with part number 3HAC028357-001 is a standard connection line specifically designed to match the DSQC679 type FlexPendant. It is not just an power supply line, but also a composite channel integrating high-speed data communication, emergency stop signal transmission, and equipment safety interlock. It can be said without exaggeration that the on-off and stability of this cable directly determine whether the robot can be "awakened" and "controlled".

Inquiry

Write a Review

Features

High-reliability connectors: Both ends of the cable feature ABB's patented locking circular connectors. These connectors have a foolproof design to ensure the plug-in is uniquely correct and are equipped with a sturdy threaded locking ring, which can effectively resist loosening caused by vibration and ensure reliable contact.

Precise length specifications: This cable has standard lengths (usually fixed lengths, such as several meters), ensuring that it can provide sufficient working radius under standard control cabinet layout while not causing entanglement or safety hazards due to excessive length.

Applications

Full signal transmission: The cable incorporates multiple sets of independent wires to transmit all critical signals between the controller and the control cabinet, including high-speed bus communication data, video signals, button commands, etc., ensuring real-time and non-delayed operation responses.

Safe power supply: Provides a stable and reliable DC power supply for the controller to ensure its long-term operational endurance.

Emergency safety circuit (E-Stop) integration: The cable integrates the crucial emergency stop circuit. When the operator presses the emergency stop button on the controller, the signal is transmitted to the control cabinet with the highest priority and reliability, causing the robot to immediately enter a safe stop state, which is the core design to ensure human-machine safety.

Enable device connection: Connects the three-section enable device on the back of the controller. Only when pressed correctly can the robot enter the manual operation mode, providing another layer of safety protection.

ABB Teach Pendant Cable for DSQC679 3HAC028357-001 ADAMICU 12

Product Name	Teach Pendant Cable for DSQC679	ABB Part Number	3HAC028357-001
ABB Type Designation	38×34×22	Applicable equipment	DSQC679 type FlexPendant teaching pendant that is compatible with the ABB IRC5 robot control system
Rated Voltage	30 V-60V	Rated Current	Low current
Shielding Performance	Highly shielded	Outer Diameter of Cable (OD)	Ranging from 10mm to 15mm
Conductor material	Tinned Copper	Number of conductors	At least 6-10 or more independent insulated wires
Insulating material	The internal wires are usually made of PVC or TPE	Outer sheath materia	High flexibility PVC or polyurethane (PUR)
Minimum bending radius	Around 50mm to 100mm	Length	5/7/10m
Connector type 1	Teaching device end: Special circular multi-pin connector (usually 12 pins or more, matching the DSQC679 interface)	Connector type 2	Control cabinet end: Special rectangular or circular connector, inserted into the teaching device interface module on the control cabinet panel
Operating temperature range	-20°C to +80°C	Storage temperature range	-40°C to +90°C
Customized service	Length, stripping size, sheath color, interface type, etc. can all be customized
