Micro HDMI Type D 19-Pin Male Connector

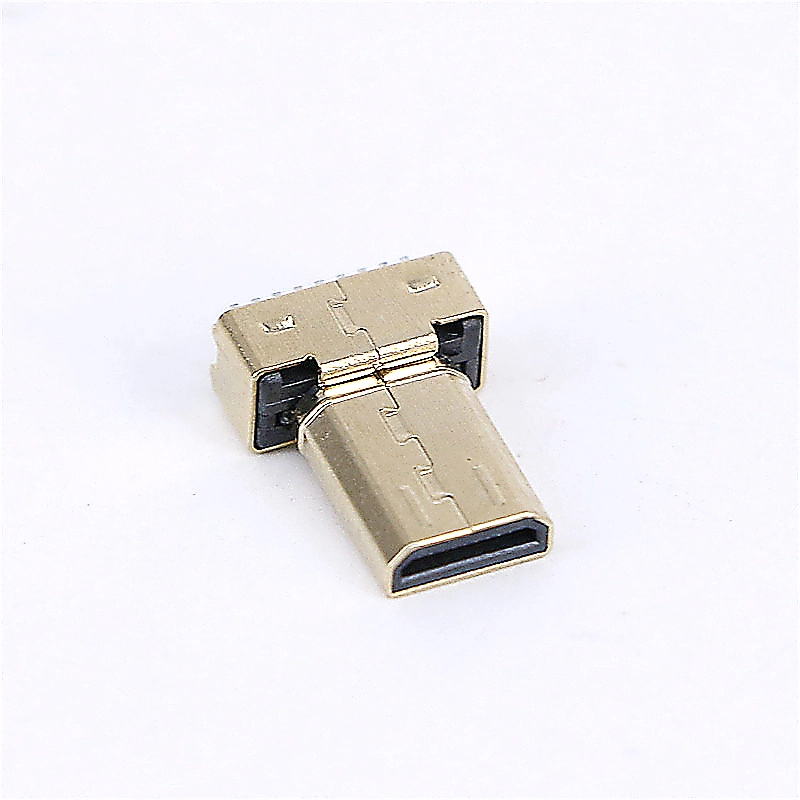

This is a 19-pin male HDMI Type D (Micro HDMI) connector, featuring a compact side exit/wafer-level design. It has a solid golden metal housing and gold-plated internal contacts to ensure stable signal transmission. The product is small in size (approximately 2.8mm x 6.4mm), making it easy to integrate into devices with limited space. It supports high-definition audio and video signal transmission and is suitable for portable electronic devices such as smartphones, tablets, portable cameras, drones, and dash cams that have high requirements for size and wiring.

Shipping Terms:

EXW or DAP

Payment Terms:

100% T/T IN ADVANCE

Place of Origin:

Guangdong,China

Shipping Method:

Customize

Packaging:

Carton

Production Lead Time:

About 7-15 days

Inquiry

Write a Review

Features

Extremely small size: Dimensions are approximately 2.8 mm × 6.4 mm, much smaller than standard HDMI and Mini HDMI, making it suitable for ultra-portable devices.

Space-saving: Side cable exit design avoids the cable protruding downward, allowing for a more compact and flat internal layout of the device.

High-speed transmission: Supports the transmission of high-definition video and audio signals, fully compliant with HDMI 1.3/1.4 standards.

High durability: Mechanical life can reach up to 5,000 insertions and removals.

Stable connection: Contact parts are gold-plated to ensure good conductivity and corrosion resistance.

Advantages

Core Advantages

Micro HDMI Type D 19-Pin Male Connector 13

Ultra-miniaturization, saving device space

1.Smallest size: The specification is only 5.83 mm × 2.20 mm, which is approximately 1/3 the size of standard HDMI (Type A) and 1/2 the size of Mini HDMI (Type C). 2.The appearance is similar to Micro USB, perfectly adapting to the structural design of ultra-thin devices such as smartphones, action cameras, tablets, ultrathin laptops, and drones.

Micro HDMI Type D 19-Pin Male Connector 14

No performance degradation, full-function high-definition transmission

1.19 Complete Configuration: The number of pins is the same as that of the standard HDMI, supporting HDMI 1.4 and above specifications. 2.High Bandwidth: Supports a transmission rate of 10.2 Gbps. 3.High Definition Audio: Supports 4K@30Hz, 1080p video, multi-channel surround sound, 3D format, CEC (device control), ARC (audio return), etc. 4.One-Way Connection: Transmits video + audio + control signals over a single cable, simplifying wiring.

Applications

Portable consumer electronics: such as smart phones, tablet computers, high-definition cameras, digital cameras.

Industrial and security: portable test instruments, security surveillance cameras, drone video transmission modules.

Automotive electronics: in-car entertainment systems and dash cameras.

Connector type	HDMI Type D (Micro HDMI)	Pin count	19 Position
Mounting method	Surface Mount (SMT) or Through-Hole (DIP)	Wiring direction	Side exit / Horizontal mounting
Contact material	Copper alloy or phosphor bronze, gold-plated surface	Rated voltage	Maximum 40V AC/DC
Rated current	Maximum 0.5A	Insulation resistance	Minimum 10MΩ
Contact resistance	Maximum 0.03Ω	Operating temperature	-25°C to +85°C
Shell material	Metal	IP rating	IP50
Working temperature	-25°C~ 250°C	Salt Spray	96H
