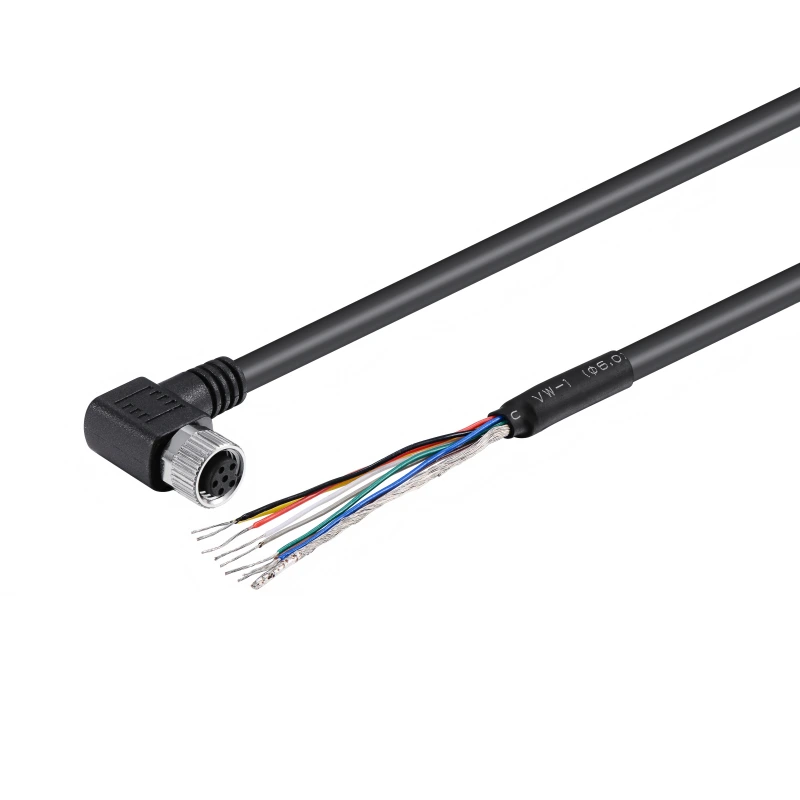

M8 6 Pin Right-Angle Female A-coded Connector to Open or Customized Ends Power Cable
The other end features open-ended stripped wires, allowing customers to wire flexibly according to on-site requirements.
This cable assembly enables flexible routing in confined spaces such as industrial control cabinets, robot joints, and compact sensor nodes, preventing excessive cable bending and ensuring stable and reliable transmission of signals and power.
Features
Equipped with an M8 6-pin female connector, suitable for compact industrial equipment, sensors, signal transmission and automation control connections.
Available in four right angle orientations: keyway up, keyway down, keyway left and keyway right. Multiple mold options are available to meet different installation and cable routing requirements.
A-coded design is suitable for sensors, actuators, power supply connections and industrial cameras.
Available in 3, 4, 5, 6 and 8 pin configurations, supporting different transmission requirements from simple switch signals to more complex encoder signals.
When properly mated and locked, the protection rating can reach IP67, providing effective dustproof, waterproof and vibration-resistant performance.
Gold-plated contacts provide low contact resistance. Shielded cable structure is also available to suppress electromagnetic interference and ensure signal integrity.
Applications
M8 Right Angle Connector Orientation Options
For M8 right angle cable assemblies, the keyway direction should be confirmed before production. The keyway position affects the final cable exit direction after the connector is mated with the device interface.
When viewed from the mating face, the keyway can be positioned in different directions:
Keyway Up
Keyway Down
Keyway Left
Keyway Right
Customers can choose the proper orientation according to the device interface, installation space and cable routing requirements.
| Connectors | M8 threaded F/M Left/Right/Upward/Under-Angle,Open | Pin type | 3/4/5/6/8/12pin |
| AWG | 28/26/24AWG | Cable diameter | 4.8/6.2/7.5mm |
| Length | 1/3/5/8/10/50M(Customizable) | Min.bending radius | 8 Times*OD |
| Wire core material | Oxygen-free copper | Rated current | 3-5Pin: 3A; 6-12Pin: 1A |
| Max.bending cycles | ≥5 million times | Rated voltage | 3-4Pin: 50V; 5-12Pin: 30V |
| Tensile property | 50N | Contact resistance | ≤5mΩ |
| Working temperature | -50°C~150°C | Contact electroplated layer | Gold |
| Jacket | PVC/PUR(oil-resistant, wear-resistant, highly flexible) | Cable color | Black |
| IP rate | IP65/IP40 | Certification | UL,RoHS |
