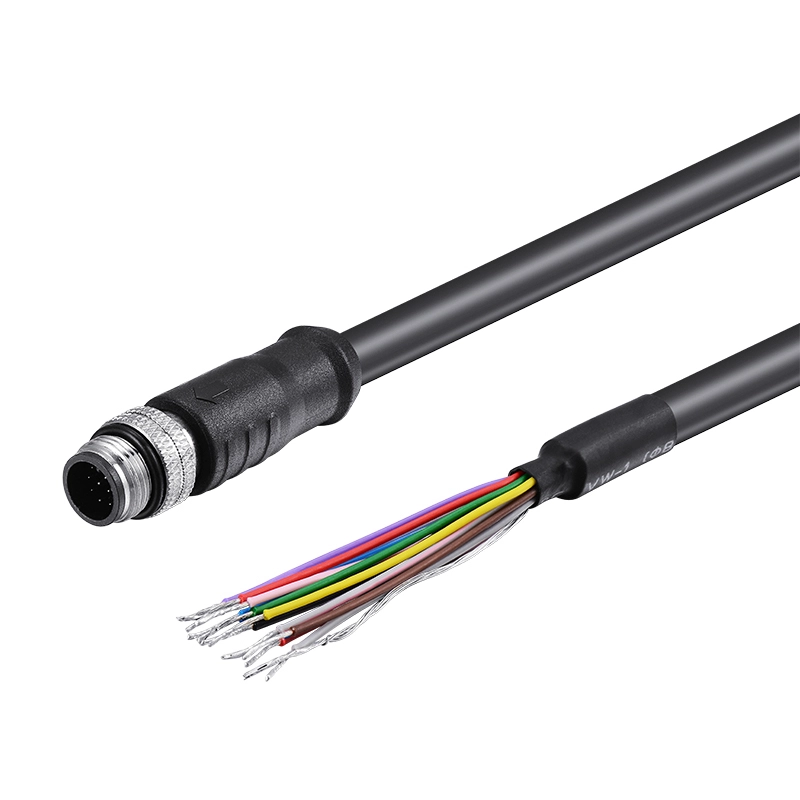

M12 12 Pin Male Straight Open-End Power Cable Assembly
Designed specifically for industrial automation, industrial cameras, sensors, actuators, and fieldbus applications, these cables can be flexibly adapted to meet the needs of power supply, signal transmission, and equipment integration.
Features
Compact M12 12-pin circular connector, suitable for industrial equipment connection.
The open-end/tinned wire side allows flexible wiring to PLCs, terminal blocks, control boards or internal equipment circuits.
Suitable for camera trigger, exposure control, input/output signals and auxiliary power connections.
The M12 threaded structure provides stable mating and helps reduce loosening caused by vibration.
Foil shielding, braided shielding or combined shielding can be selected to improve EMI resistance.
Cable length, wire gauge, core arrangement, jacket material, wire color, labels and pinout can be customized.
PVC, PUR/TPU and other jacket materials can be selected according to flexibility, abrasion resistance, oil resistance or bending requirements.
Continuity, short-circuit, miswiring and insulation tests can be performed before delivery to ensure reliable connection performance.
Applications
📷 Industrial camera trigger signal connection
👁️ Machine vision inspection systems
🏭 Automated production lines
🔌 PLC and I/O module connection
📡 Sensor and controller wiring
🤖 Robotics and intelligent equipment
📡 Barcode readers and inspection devices
⚙️ Industrial control cabinet wiring
💿 Customized signal cable assemblies
M12 12Pin Female Straight
M12 12Pin Female Right-angle
| Connectors | M12 threaded to locking F/M,Open | Pin type | 12pin |
| AWG | 26/24AWG | Cable diameter | 7.5mm |
| Length | 1/3/5/8/10/50M(Customizable) | Min.bending radius | 8 Times*OD |
| Wire core material | Oxygen-free copper | Rated current | 12Pin: 1A |
| Max.bending cycles | ≥5 million times | Rated voltage | 12Pin: 30V |
| Tensile property | 50N | Contact resistance | ≤5mΩ |
| Working temperature | -50°C~150°C | Contact electroplated layer | Gold |
| Jacket | PVC/PUR(oil-resistant, wear-resistant, highly flexible) | Cable color | Black |
| IP rate | IP65/IP40 | Certification | UL,RoHS |
