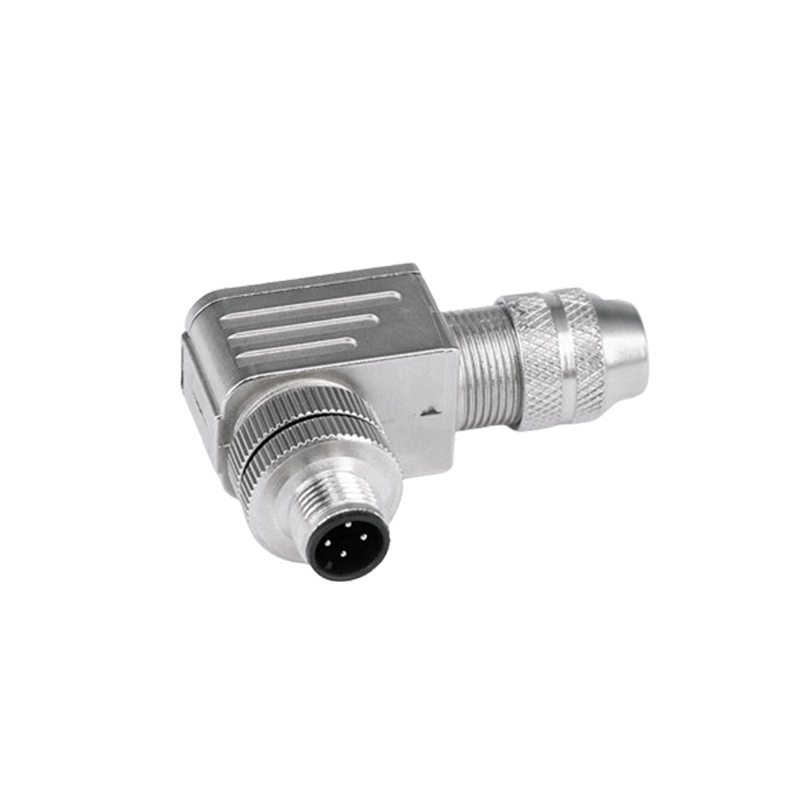

Circular Connector M12 A-coded 4Pin Assembled Metal Elbow IP67
The M12 field-assembled plug (A code, 4 pin, male, elbow, shielded, metal housing) is a compact circular connector suitable for harsh industrial environments.
Its core feature is the adoption of A-code (compliant with IEC 61076-2-101 standard), specifically designed for general signal transmission in sensors, DC power supplies, and other applications. The plug type is pin-type, featuring a 90-degree bend in the cable exit direction, facilitating wiring in confined spaces and reducing cable stress.
Its core feature is the adoption of A-code (compliant with IEC 61076-2-101 standard), specifically designed for general signal transmission in sensors, DC power supplies, and other applications. The plug type is pin-type, featuring a 90-degree bend in the cable exit direction, facilitating wiring in confined spaces and reducing cable stress.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
3 (14)
2 (15)
1 (18)
Features
Applications
Miniature sensors
Industrial cameras
Electric vehicles
Factory automation
| Connectors | M12 Assembled Metal A-coded 4Pin Male Elbow | Classification | Circular Connector |
| Quantity of Pins | 4 | Interface code | A-coded |
| Connection method | Threaded connection | Wiring method | Screw fastening |
| Terminal material | Copper, Gold-plated | Rubber core material | Nylon, black |
| Insulation material | Reinforced nylon, black | Sealing ring | Rubber |
| Waterproof ring | Silicone, O-coded | Out shell | Zinc alloy/brass, nickel plated |
| Rated current | 4A | Rated voltage | 250V |
| Insulation resistance | ≥100mΩ | Contact resistance | ≤5mΩ |
| Plug/unplug cycles | ≥500 times | Working temperature | -40℃~80℃ |
| Salt spray | 48h | Shielding performance | Shielding |
| IP rating | IP65/lP67 | Flame retardant rating | UL 94-V0 |
