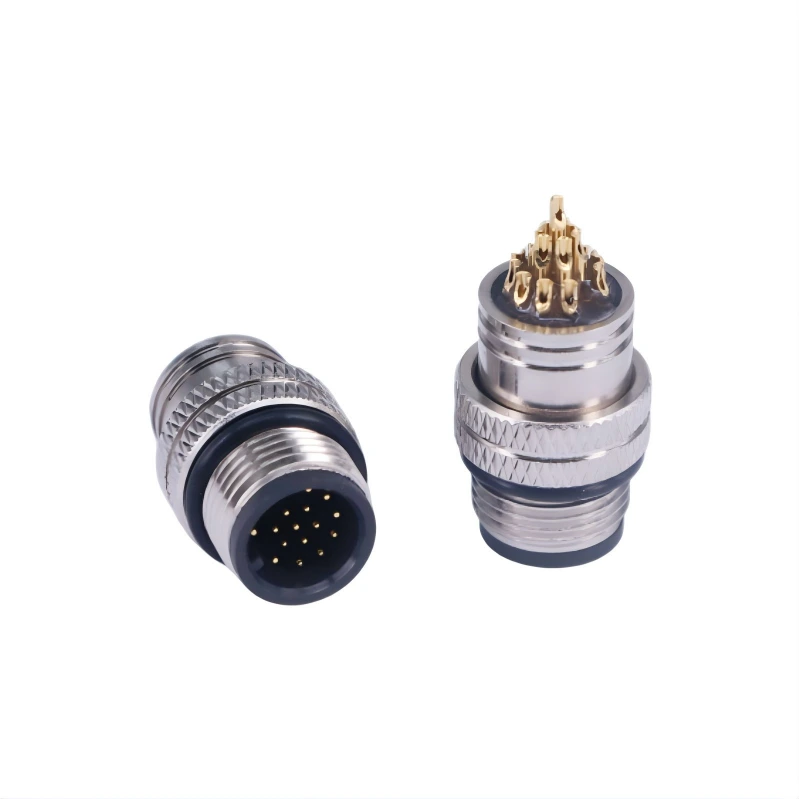

M12 A-Coded 17 Pin Male Solder Type Connector ADAMICU
The M12 17 pin male A-coded solder type connector is designed for industrial automation, high-density signal transmission, and integrated equipment connection applications. With its compact structure, this connector allows more contact positions in a limited installation space, making it suitable for devices that require multi-signal transmission through a single interface.
As a male connector, it is used together with the matching female connector to provide stable and reliable mating performance. Featuring a metal shell and threaded locking structure, it offers secure connection, good vibration resistance, and dependable performance in industrial environments. The solder type termination also makes it suitable for cable assembly and customized wiring solutions in control systems, testing equipment, servo systems, and precision automation devices.
As a male connector, it is used together with the matching female connector to provide stable and reliable mating performance. Featuring a metal shell and threaded locking structure, it offers secure connection, good vibration resistance, and dependable performance in industrial environments. The solder type termination also makes it suitable for cable assembly and customized wiring solutions in control systems, testing equipment, servo systems, and precision automation devices.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
M12 17 M display1
M12 17 M display2
M12 17 M display3
Features
Applications
Process Advantages
1
Precision Contact Machining
The contacts are manufactured with precision processing to ensure neat pin arrangement, stable mating, and consistent electrical contact.
2
Gold-Plated Contact Surface
The conductive parts are gold plated to improve oxidation resistance, maintain conductivity, and support long-term use.
3
Accurate Thread Processing
The threaded section is processed with good dimensional accuracy, helping ensure smooth coupling and stable locking.
4
Reliable Insulator Positioning
The internal insulator structure helps maintain reliable pin positioning, which is especially important in high-density contact layouts.
5
Suitable for Standard and Custom Assembly
The solder type construction supports both standard production and customized cable assembly based on different application requirements.
| Connectors | M12 A-coded 17Pin/12Pin Female/Male | Classification | Circular Connector |
| Quantity of Pins | 17/12 | Part number | M12-17F-A00-003, M12-12M-A00-003 |
| Terminal material | C3604 Gold-plated 2U | Rubber core material | PA66 |
| Shielding case | Steel alloy | Waterproof ring | Silicone |
| Outer shell | Steel alloy | Rated current | 1A |
| Rated voltage | 30V | Insulation resistance | ≤10mΩ |
| Contact resistance | ≥100mΩ | Plug/unplug cycles | ≥500 times |
| Working temperature | -40℃~85℃ | Salt spray | 48h |
| Shielding performance | Shielding | IP rating | IP65/lP67 |
| Flame retardant rating | UL 94-V0 |
M12 17pin Male Connector Drawing
