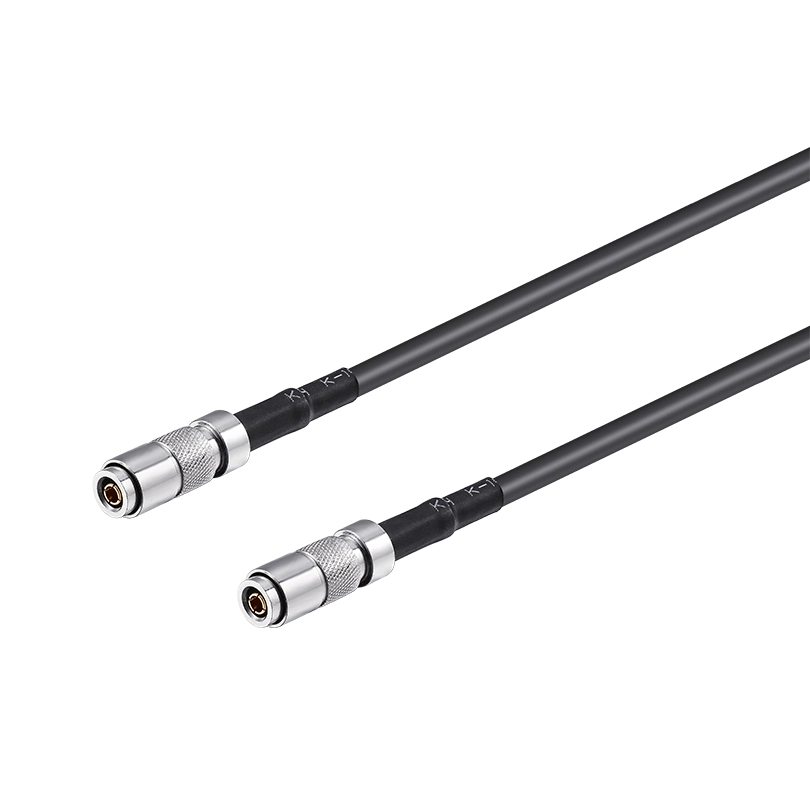

CoaXPress cable DIN to DIN Single core Coaxial cable CXP-6 CXP-12
It uses a 75Ω coaxial cable as the physical medium and supports multiple transmission rates ranging from 1.25Gbps to 12.5Gbps.
With a single cable, it can achieve the functions of downlinking image data, uplinking control signals, and powering the camera. The maximum transmission distance can reach 100 meters (at a 1.25Gbps rate).
Features
Applications
The CoaXPress single-core cable is widely used in industrial vision inspection, medical imaging, semiconductor inspection, intelligent transportation systems, and printing inspection, etc. It is particularly suitable for high-end machine vision applications that require high speed, low latency, and long-distance transmission.
| Connectors | DIN Male, DIN Male | Wire core material | Coaxial cable |
| AWG | 18AWG，23AWG | Contact electroplated layer | Gold-plating |
| Cable diameter | 4.2mm | Insulating layer | Teflon |
| Length | 1M,3M,5M,8M,10M | Outer shell | Plated with nickel |
| Cable mechanical | 0.14mm² *1C+B*2 75Ωblack PVC | Min.bending radius | 8 Times*OD |
| OD | 4.2mm | Max.bending cycles | ≥500 million times |
| Shielded structure | Double shielding | Max.Voltage | 300V DC |
| Cable resistance | at 20°C MAX ≤93.25Ω/km | Tensile property | 50N |
| Contact resistance | 30MΩ | Working temperature | -20°C~80°C |
| Jacket | PVC | Cable color | Black |
| Certification | UL,RoHS |
