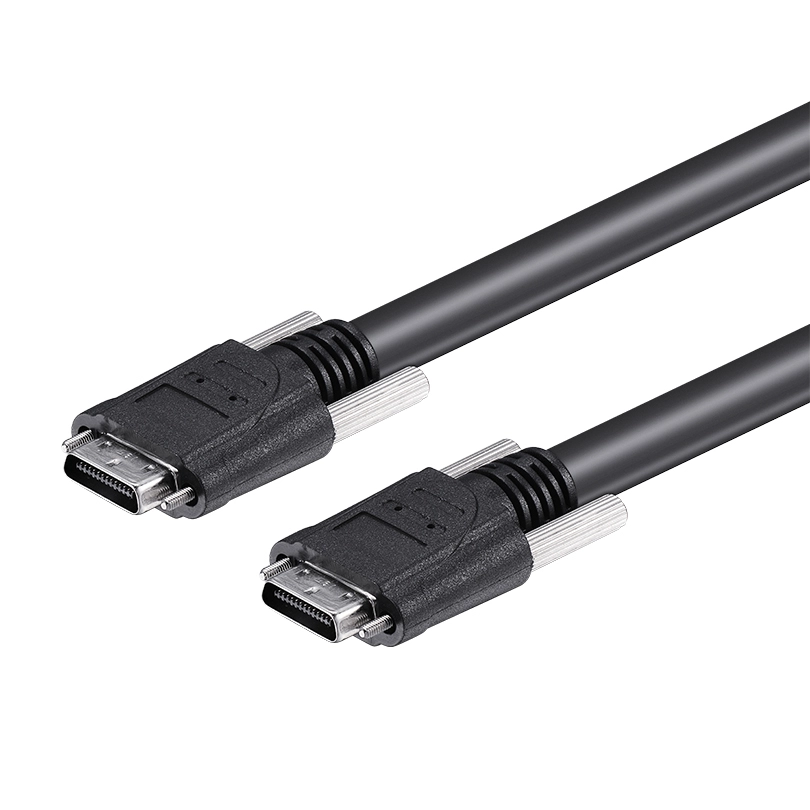

Camera Link Cable SDR to SDR High-flexibility Drag Chain Straight
Camera Link cables specifically designed for industrial cameras and image acquisition devices, used to connect digital cameras with Camera Link interfaces to frame grabbers. This cable is specifically designed for industrial cameras in machine vision, suitable for various scenarios such as static, high flexibility, and industrial robotic,etc.
Adam's PoCL cables enable simultaneous signal transmission and power supply to the camera through a single cable. There are two main two types of 26-pin connectors: MDR (standard size) and SDR (compact size).
Classification of Cables:SDR -SDR, SDR-MDR，MDR-MDR
These two connectors share identical pin definitions and signal functions, with the core distinction lying in their physical dimensions (SDR is more compact) to accommodate different installation space requirements.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
display1
display2
jpg100-t3-scale100
Features
Applications
Medical static imaging
Robot vision system
Camera on mobile platform
Factory automation
Image detection application
| Connectors | SDR 26, SDR 26 | Max. Voltage | 30V DC |
| AWG | 28AWG | Conduction resistance | 5Ω (Maximum) |
| Cable diameter | 9.5mm | Insulation resistance | 5MΩ (Minimum), DC 300V, 0.1S |
| Length | 10M | Working temperature | -35°C~80°C |
| Bending cycles | 5 Million times | Jacket | PVC |
| Min. bending radius | 8 times * OD | Cable color | Black |
| Max. U-type bending cycles | 5 million times | Certification | UL, RoHS |
SDR-SDR Drawing
